Optimizing material selection for carbide heading dies is crucial for enhancing your tool lifespan, improving your product quality, and reducing your manufacturing costs. It involves a deep understanding of the specific demands of your cold forming process and the unique properties of various die materials, primarily tungsten carbide and specialized steels.

Optimizing material selection for carbide heading dies is crucial for enhancing your tool lifespan, improving your product quality, and reducing your manufacturing costs. It involves a deep understanding of the specific demands of your cold forming process and the unique properties of various die materials, primarily tungsten carbide and specialized steels.

Table of Contents

1. What is a Carbide Heading Die and Why is Material Critical?
2. Why is Tungsten Carbide the Preferred Choice for Carbide Heading Dies?
3. What Factors Influence the Performance and Longevity of Carbide Heading Dies?
4. What are Common Failure Modes of Carbide Heading Dies and How Can Material Selection Prevent Them?
5. How to Select the Right Material for Your Specific Carbide Heading Die Application?
6. What is the Manufacturing Process for High-Quality Carbide Heading Dies?
7. How Can XILUO Mold Optimize Your Carbide Heading Die Material Selection?

1. What is a Carbide Heading Die and Why is Material Critical?

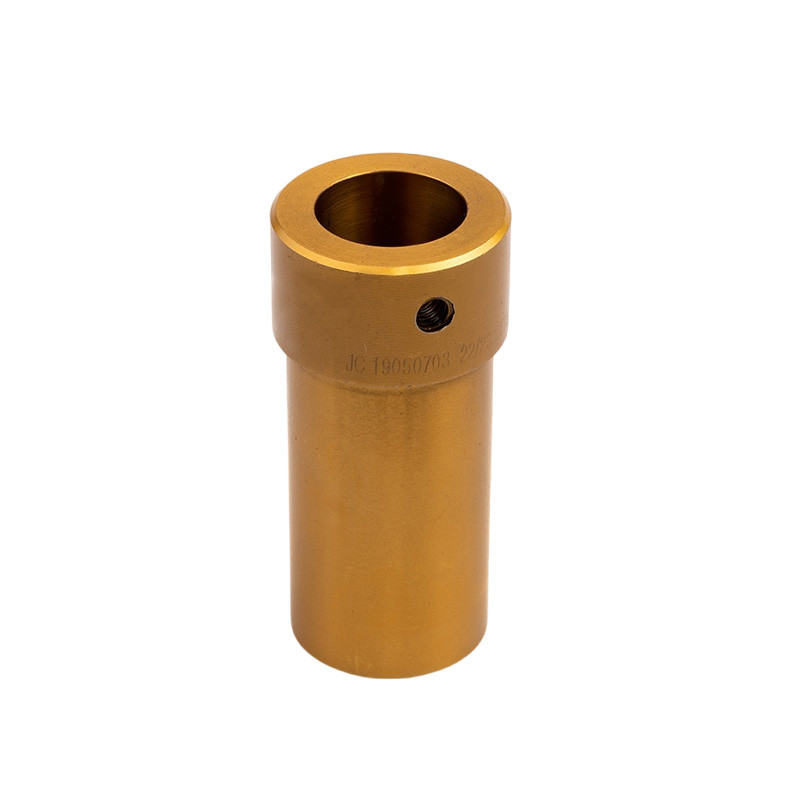

A carbide heading die is a precision tool used in the cold forming process to shape metal wire or rod into fasteners and other components without heating the material above its recrystallization temperature. Material selection is critical because these dies must withstand immense compressive forces, abrasive wear, and repetitive impact loads, directly impacting your tool lifespan, your part quality, and your overall production efficiency.

Cold heading is a manufacturing process that transforms metal wire into complex shapes, most commonly fasteners like screws, bolts, and rivets, through a series of rapid, high-pressure impacts. Imagine a hammer striking a piece of metal repeatedly to form its head – that’s essentially what a cold heading machine does, but with incredible precision and speed. At the heart of this process are your carbide heading dies. These dies are the workhorses, enduring extreme conditions with every single part you produce. Their ability to withstand these harsh environments directly dictates how long they last, how consistent your final product is, and ultimately, how profitable your operation remains. A carbide heading die that fails prematurely leads to costly downtime, material waste, and missed production targets for you. Therefore, the choice of material for these dies is not just a technical specification; it’s a strategic decision that underpins the success of your entire cold heading operation.

1.1. The Role of Dies in Cold Forming

Your carbide heading dies are typically composed of several parts, including the main die, punch, and ejector pins, all working in concert to shape the workpiece. The material of the die must possess a unique combination of properties to perform effectively under the severe conditions of cold forming. For instance, in the production of a standard hex bolt, the die must first guide the wire, then contain the material as the punch forms the head, and finally allow for the ejection of the finished part. Each stage subjects your carbide heading die to different stresses.

To illustrate the distinct roles and the types of stress each component of a carbide heading die endures, the following table provides a clear overview. Understanding these individual functions is crucial for appreciating why specific material properties are vital for each part.

Table: Key Functions of Carbide Heading Die Components

The continuous impact and friction generate significant heat and stress, demanding materials with exceptional hardness, wear resistance, and toughness. Without the right material, your carbide heading dies can quickly deform, crack, or wear out, leading to inconsistent part dimensions, surface defects, and ultimately, production halts.

1.2. Consequences of Poor Material Selection

Choosing an inadequate material for your carbide heading dies can lead to a cascade of negative consequences that severely impact your manufacturing efficiency and profitability. One of the most immediate effects is a drastically reduced die lifespan. Instead of lasting for millions of cycles, a poorly chosen carbide heading die might fail after only thousands, necessitating frequent replacements. This not only increases your tooling costs but also leads to significant machine downtime as dies are changed, calibrated, and restarted.

Furthermore, material issues can compromise the quality of your finished product. Carbide heading dies that wear prematurely can produce fasteners with incorrect dimensions, poor surface finishes, or structural weaknesses, leading to high scrap rates and potential customer rejections. For example, if the die cavity wears unevenly, the resulting bolt heads might be off-center or undersized, failing to meet critical industry standards. This directly impacts your brand reputation and can result in costly rework or warranty claims. Ultimately, poor material selection translates directly into higher operational costs, lower output, and diminished competitiveness in your market.

2. Why is Tungsten Carbide the Preferred Choice for Carbide Heading Dies?

Tungsten carbide is the preferred material for carbide heading dies due to its exceptional combination of hardness, wear resistance, and compressive strength, significantly outperforming traditional steel dies in demanding cold forming applications. This superior performance translates directly into extended tool life, higher production volumes, and improved part quality, making it an economically viable choice for your operations despite a higher initial cost.

For decades, steel was the go-to material for cold heading dies. While effective for some applications, its limitations became apparent as production speeds increased and material hardness evolved. The advent of tungsten carbide revolutionized the industry, offering a material that could withstand the brutal conditions of cold heading far more effectively. Its unique metallurgical properties, derived from a composite structure of hard tungsten carbide particles bonded within a tough metallic binder (typically cobalt), provide an unparalleled balance of strength and durability. This allows for the continuous production of high-quality fasteners, even when forming difficult materials or at high speeds, making it the ideal choice for your carbide heading dies.

2.1. What are the Key Advantages of Carbide Dies?

The advantages of using tungsten carbide for your carbide heading dies are multifaceted and directly contribute to enhanced manufacturing efficiency and product quality.

• Superior Hardness: Tungsten carbide boasts a hardness far exceeding that of even the hardest tool steels. This extreme hardness is crucial for resisting plastic deformation and maintaining the die’s precise dimensions under the immense compressive forces exerted during cold heading. For instance, while a typical tool steel might have a Rockwell hardness of HRC 60-65, tungsten carbide grades commonly used for your carbide heading dies can reach HRA 80-95, making them incredibly resistant to indentation and wear.
• Exceptional Wear Resistance: This is perhaps the most significant advantage. The high hardness and fine grain structure of tungsten carbide make it highly resistant to abrasive wear, which is the primary mode of failure for your carbide heading dies. As the metal wire slides and deforms within the die cavity, it constantly abrades the die surface. Carbide’s resistance to this abrasion means dies maintain their critical dimensions for much longer, producing millions of parts before requiring replacement. This is particularly evident when forming high-strength steels or abrasive materials like stainless steel.
• High Compressive Strength: Cold heading is fundamentally a compressive process. Tungsten carbide exhibits incredibly high compressive strength, meaning it can withstand tremendous squeezing forces without deforming or fracturing. This property is vital for maintaining the integrity of the die cavity and preventing “mushrooming” or bulging under pressure, ensuring consistent part geometry in your carbide heading dies.
• Good Impact Toughness (with proper grade selection): While often perceived as brittle, specific grades of tungsten carbide are engineered with higher cobalt content or larger grain sizes to provide excellent impact toughness. This allows your carbide heading die to absorb the shock of repeated impacts without cracking or chipping, which is critical in high-speed heading operations. For example, a die used for forming large bolt heads will require a tougher carbide grade than one used for small, intricate parts.
• Dimensional Stability: Due to its inherent hardness and wear resistance, your carbide heading dies maintain their precise dimensions over extended production runs. This leads to higher consistency in the manufactured parts, reducing scrap rates and ensuring that products meet strict dimensional tolerances.

2.2. How Do Carbide Dies Compare to Steel Dies?

The comparison between tungsten carbide and traditional tool steel dies highlights why carbide has become the industry standard for high-volume, high-precision cold heading, particularly for your carbide heading dies.

The following table provides a direct comparison between the characteristics of tool steel dies and tungsten carbide dies, offering a clear perspective on their respective strengths and ideal applications in cold heading.

Table: Steel vs. Tungsten Carbide Dies Comparison

Examples:

• Steel Dies: Often used for prototype runs, short production batches, or when forming very soft materials like aluminum or brass where wear is less of a concern. For example, a small job shop making custom, low-volume brass fittings might opt for steel dies due to lower upfront cost.
• Carbide Heading Dies: Indispensable for mass production of steel fasteners (e.g., automotive bolts, construction screws). A manufacturer producing millions of M8 steel bolts per month would exclusively use carbide heading dies to ensure consistent quality and minimize downtime. The initial investment in carbide is quickly recouped through vastly superior lifespan and reduced operational costs. For instance, a carbide heading die might produce 5 million parts while a steel die might only produce 50,000 parts under the same conditions, making the cost per part significantly lower with carbide.

3. What Factors Influence the Performance and Longevity of Carbide Heading Dies?

Beyond the fundamental material choice, the performance and longevity of your carbide heading dies are significantly influenced by the specific carbide grade, the precision of the die design, the quality of manufacturing, and the application of advanced surface treatments. Each of these elements plays a critical role in determining how well a carbide heading die withstands the harsh conditions of cold forming and how long it maintains its operational integrity.

While tungsten carbide offers a superior foundation, not all carbide heading dies are created equal. The subtle nuances in material composition, the meticulousness of the manufacturing process, and the final surface enhancements can dramatically alter your die’s lifespan and performance. Understanding these factors is key to truly optimizing your tooling investment and achieving maximum productivity.

3.1. How Does Material Selection Impact Die Performance?

The term “tungsten carbide” encompasses a wide range of specific grades, each with a unique balance of properties tailored for different applications. The primary variables in carbide composition for your carbide heading dies are the cobalt (Co) binder content and the tungsten carbide (WC) grain size.

• Cobalt Content: Cobalt acts as a binder, holding the hard tungsten carbide grains together.
  • Higher Cobalt Content (e.g., 10-15% Co): Increases toughness and impact resistance, making the carbide less brittle and more resistant to chipping and cracking. This is ideal for applications involving heavy impacts, large deformations, or forming harder materials. However, higher cobalt content generally reduces hardness and wear resistance.
  • Lower Cobalt Content (e.g., 6-8% Co): Results in higher hardness and wear resistance, making it suitable for applications where abrasion is the primary concern and impact forces are moderate. This is often chosen for finishing dies or forming softer materials where precision and surface finish are paramount.
• Tungsten Carbide Grain Size: The size of the WC particles also significantly influences the carbide’s properties.
  • Fine Grain Size (e.g., 0.5-1.0 µm): Leads to higher hardness, wear resistance, and better surface finish capabilities. Ideal for precision carbide heading dies and forming smaller, intricate parts.
  • Coarse Grain Size (e.g., 3.0-6.0 µm): Provides increased toughness and resistance to thermal shock, making it suitable for heavy-duty applications with high impact loads.

Examples of Carbide Grades and Their Applications for Carbide Heading Dies:

• YG6 (6% Co, fine grain): High hardness, excellent wear resistance. Ideal for finishing dies, wire drawing dies, and forming small, precise parts from softer steels.
• YG8 (8% Co, medium grain): Good balance of hardness, wear resistance, and toughness. A versatile general-purpose grade for many carbide heading die applications, especially for medium-carbon steel fasteners.
• YG15 (15% Co, coarse grain): High toughness and impact resistance. Suited for heavy-duty heading, forming large parts, or working with high-strength alloys where impact is a major factor. Often used for initial forming stages or for carbide heading dies that experience significant shock loads.

3.2. What Role Does Design and Manufacturing Precision Play?

Even with the perfect material, a poorly designed or manufactured carbide heading die will fail prematurely. Precision in both design and manufacturing is paramount.

• Die Design:
  • Optimized Geometry: The internal geometry of the die cavity must be precisely matched to the material being formed and the desired part shape. Incorrect angles, radii, or clearances can lead to stress concentrations, premature wear, or material flow issues. For example, a sharp corner in a die cavity can become a stress riser, leading to cracking, whereas a properly radiused corner distributes stress more evenly.
  • Material Flow Analysis: Advanced design often involves simulating material flow to predict how the metal will behave within the die, allowing for adjustments to prevent defects and optimize your carbide heading die life.
  • Stress Distribution: Designers must consider how forces will be distributed across the die surface to minimize localized stress points.
• Manufacturing Precision:
  • Grinding and Polishing: The surface finish of the die cavity is critical. A mirror-like polish (e.g., Ra < 0.02 µm) reduces friction, prevents material sticking, and minimizes abrasive wear. Imperfections or rough surfaces act as nucleation sites for cracks and accelerate wear.
  • Dimensional Accuracy: Your carbide heading dies must be manufactured to extremely tight tolerances (often within microns) to ensure consistent part quality and proper fit within the heading machine.
  • Concentricity and Alignment: Proper concentricity between die components and precise alignment during assembly prevent uneven wear and premature failure.
  • Advanced Machining: Utilizing advanced CNC grinding, EDM (Electrical Discharge Machining), and wire cutting technologies ensures the complex geometries of your carbide heading dies are produced with the required accuracy and surface finish.

Practical Impact: A carbide heading die designed with optimal internal angles for a specific bolt head and then manufactured with a perfectly polished cavity will allow the material to flow smoothly, reducing friction and wear, thereby extending the die’s life significantly compared to a die with a rougher finish or suboptimal geometry.

3.3. What Surface Treatments Enhance Die Durability?

While carbide itself is highly durable, additional surface treatments can further enhance your carbide heading die’s performance, particularly in terms of wear resistance, friction reduction, and resistance to galling (material sticking).

• Polishing: As mentioned, a high-quality mirror polish is fundamental. It reduces the coefficient of friction between the workpiece and the die, minimizing abrasive wear and preventing material buildup. This is a mechanical treatment that smooths the surface.
• Heat Treatment (for steel components): While your carbide heading dies themselves are not typically heat-treated in the same way as steel, the steel casings or support components that house the carbide inserts often undergo specific heat treatments (e.g., hardening and tempering) to provide the necessary strength and toughness.
• Nitriding: This thermochemical process introduces nitrogen into the surface of steel components (not carbide inserts directly) to create a hard, wear-resistant layer. It improves fatigue strength and corrosion resistance.
• PVD (Physical Vapor Deposition) Coatings: These thin, hard coatings are applied to the surface of your carbide heading die. They significantly reduce friction and increase surface hardness, providing an additional barrier against wear and galling.
  • Titanium Nitride (TiN): A common PVD coating, recognizable by its gold color. It offers good hardness and wear resistance.
  • Titanium Carbonitride (TiCN): Harder and more wear-resistant than TiN, often used for more demanding applications.
  • Chromium Nitride (CrN): Provides excellent resistance to galling and corrosion, making it suitable for forming sticky materials like stainless steel.
  • Diamond-Like Carbon (DLC): Extremely hard and provides very low friction, ideal for applications requiring exceptional wear resistance and smooth material flow.

The following table summarizes common surface treatments applied to carbide heading dies, highlighting their primary benefits and typical application examples. This helps in understanding how these treatments contribute to enhanced die durability.

Table: Common Surface Treatments for Carbide Heading Dies

By combining the right carbide grade with precision manufacturing and appropriate surface treatments, you can achieve optimal carbide heading die performance and significantly extend tool life, leading to substantial cost savings and improved productivity.

4. What are Common Failure Modes of Carbide Heading Dies and How Can Material Selection Prevent Them?

Your carbide heading dies commonly fail due to abrasive wear, cracking, and plastic deformation, each stemming from the intense forces and friction inherent in the forming process. Strategic material selection, specifically choosing the appropriate tungsten carbide grade, is the most effective preventative measure against these failure modes, ensuring prolonged carbide heading die life and consistent part quality.

Understanding why your carbide heading dies fail is the first step toward preventing it. Each failure mode presents a unique challenge, but in almost all cases, the root cause can be traced back to the die material’s inability to withstand the specific stresses it encounters. By carefully matching the carbide’s properties—its hardness, toughness, and compressive strength—to the demands of your application, you can significantly mitigate these risks and extend the operational life of your carbide heading dies.

4.1. How to Prevent Wear and Abrasion in Dies?

Wear and abrasion are the most common failure modes for your carbide heading dies, characterized by the gradual removal of material from the die surface due to friction and the movement of the workpiece. This leads to dimensional changes in the die cavity, resulting in oversized or malformed parts.

• Causes:
  • Friction: Constant rubbing between the workpiece and the die surface.
  • Hardness of Workpiece: Forming harder materials (e.g., high-carbon steel, stainless steel) increases abrasive wear.
  • Contaminants: Abrasive particles (e.g., scale, dirt) on the wire surface.
  • Insufficient Lubrication: Lack of proper lubrication increases metal-on-metal contact and friction.
• Prevention through Material Selection:
  • High Hardness Carbide Grades: Selecting carbide grades with higher hardness and finer grain sizes (e.g., YG6, YG8) significantly increases resistance to abrasive wear. The harder the material, the more difficult it is for the workpiece to scratch or abrade its surface, thus extending the life of your carbide heading dies.
  • PVD Coatings: Applying hard, low-friction PVD coatings like TiCN or DLC creates an additional protective layer that reduces friction and enhances wear resistance.
• Practical Advice/Testing:
  • Monitor Part Dimensions: Regularly check the dimensions of your finished parts. An increase in part size (e.g., head diameter) often indicates carbide heading die wear.
  • Visual Inspection: Look for dull spots or visible grooves inside the die cavity.
  • Lubrication Optimization: Ensure consistent and adequate lubrication of your wire and dies.
  • Wire Cleaning: Implement wire cleaning processes to remove scale and contaminants before heading.

4.2. What Causes Die Cracking and How Can It Be Mitigated?

Cracking is a catastrophic failure mode where your carbide heading die develops fractures, often leading to immediate tool replacement. Cracks can be hairline or extensive, propagating from stress points.

• Causes:
  • Excessive Impact Loads: Sudden, high forces beyond the die’s impact toughness.
  • Fatigue: Repeated stress cycles leading to microscopic crack initiation and propagation.
  • Stress Concentrations: Sharp corners, poor surface finish, or internal defects in the die material.
  • Thermal Shock: Rapid temperature changes, though less common in cold heading than hot forming.
  • Misalignment: Improper setup of your carbide heading die in the machine, leading to uneven loading.
• Prevention through Material Selection:
  • High Toughness Carbide Grades: Choosing carbide grades with higher cobalt content and/or coarser grain sizes (e.g., YG15) provides greater resistance to impact and fatigue cracking. These grades are more ductile and can absorb more energy before fracturing, thus enhancing the resilience of your carbide heading dies.
  • Quality Control of Raw Material: Ensuring the carbide material itself is free from internal defects (e.g., porosity, inclusions) through rigorous inspection during manufacturing.
• Practical Advice/Testing:
  • Regular Machine Maintenance: Ensure your heading machine is well-maintained, and components are properly aligned to prevent uneven loading on your carbide heading dies.
  • Optimize Heading Parameters: Adjust machine speed and force to avoid excessive impact.
  • Stress Relieving: For complex dies, consider design features that distribute stress more evenly.
  • Non-Destructive Testing (NDT): For critical carbide heading dies, techniques like ultrasonic testing can detect internal flaws before use.

4.3. How to Address Plastic Deformation and Fatigue in Dies?

Plastic deformation (or “mushrooming”) occurs when your carbide heading die material permanently deforms under compressive stress, losing its original shape. Fatigue is a progressive structural damage that occurs under cyclic loading, leading to eventual fracture even at stresses below the material’s yield strength.

• Causes:
  • Insufficient Compressive Strength: Your carbide heading die material is not strong enough to withstand the forming forces.
  • Overloading: Applying forces beyond the die’s design limits.
  • Material Softening: Localized heating during heading can temporarily soften the die material, making it more susceptible to deformation.
  • Repeated Stress Cycles: The continuous impact and release of pressure during heading.
• Prevention through Material Selection:
  • High Compressive Strength Carbide Grades: Selecting carbide grades with high compressive strength (generally those with lower cobalt content but sufficient toughness for the application) prevents your carbide heading die from deforming under pressure.
  • Optimal Hardness: Ensuring the carbide is hard enough to resist indentation and plastic flow.
  • Fatigue-Resistant Grades: While all carbide experiences fatigue, selecting grades with good fracture toughness and ensuring a high-quality, defect-free surface finish can prolong fatigue life of your carbide heading dies.
• Practical Advice/Testing:
  • Process Monitoring: Monitor heading forces and adjust machine settings to stay within the die’s design limits.
  • Die Design Optimization: Ensure the die design distributes forces effectively, avoiding areas of concentrated stress that could lead to localized deformation.
  • Cooling Systems: Implement effective cooling systems for your carbide heading dies to prevent excessive heat buildup, which can reduce material hardness.
  • Die Inspection: Regularly inspect dies for signs of bulging or changes in cavity shape.

By understanding these common failure modes and strategically selecting the appropriate carbide grade, you can significantly extend the lifespan of your carbide heading dies, reduce downtime, and maintain consistent product quality.

5. How to Select the Right Material for Your Specific Carbide Heading Die Application?

Selecting the right material for a carbide heading die is a nuanced process that requires a comprehensive evaluation of your workpiece material, the complexity of your part geometry, your required production volume, and the specific stresses the die will endure. This holistic approach ensures that the chosen carbide grade and die design are optimally matched to your application’s demands, maximizing efficiency and carbide heading die lifespan.

The “best” carbide grade doesn’t exist in isolation; it’s always the best grade for your specific application. A carbide heading die that performs exceptionally well when forming small brass screws might fail rapidly when heading large stainless steel bolts. Therefore, a systematic approach to material selection, considering all critical variables, is essential for achieving peak performance and cost-effectiveness for your carbide heading dies. This involves a collaborative effort between you, the fastener manufacturer, and your die supplier, leveraging both operational experience and metallurgical expertise.

5.1. What Specifications and Dimensions are Crucial for Die Selection?

Beyond the general material type (carbide vs. steel), several specific parameters and dimensions are crucial for precise carbide heading die selection and customization for your needs.

• Workpiece Material: This is perhaps the most critical factor.
  • Hardness: Harder workpiece materials (e.g., high-carbon steel, stainless steel, exotic alloys) demand carbide heading dies with higher hardness and wear resistance (lower cobalt, finer grain carbide). Softer materials (e.g., aluminum, brass, mild steel) may allow for tougher, higher cobalt carbide grades or even specialized steels for less demanding applications.
  • Tensile Strength: Higher tensile strength materials require carbide heading dies with greater compressive strength and toughness to withstand the deformation forces.
  • Abrasiveness: Materials with high silicon content or other abrasive elements will necessitate carbide grades with superior wear resistance for your carbide heading dies.
• Part Geometry and Complexity:
  • Simple vs. Complex Shapes: Simple shapes (e.g., basic round heads) may allow for more general-purpose carbide grades. Complex geometries with sharp corners, intricate features, or deep cavities will require carbide heading dies with excellent toughness to prevent cracking and superior wear resistance to maintain intricate details.
  • Size of Part: Larger parts generally involve higher forming forces and greater material flow, often requiring tougher carbide grades for your carbide heading dies. Smaller, intricate parts demand finer grain carbide for precision and surface finish.
• Production Volume and Speed:
  • High Volume: For millions of parts, carbide is almost always the only viable option due to its extended lifespan. The initial higher cost is quickly amortized for your carbide heading dies.
  • Low Volume/Prototyping: For short runs, the cost-effectiveness of steel dies might be considered, though carbide still offers superior quality and consistency.
  • High Speed: Faster heading machines generate more heat and higher impact frequencies, necessitating carbide grades with good thermal stability and fatigue resistance for your carbide heading dies.
• Machine Type and Condition:
  • Machine Rigidity: A highly rigid and well-maintained machine will put less stress on your carbide heading dies, potentially allowing for harder, less tough carbide grades.
  • Alignment: Poor machine alignment can lead to uneven loading and premature carbide heading die failure, regardless of material.
• Lubrication System: The effectiveness of your lubrication system impacts friction and heat generation, influencing the required wear resistance of your carbide heading die material.

The following table provides a simplified matrix for selecting the appropriate carbide heading die material based on various application characteristics, offering you a clear guide for initial material considerations.

Table: Carbide Heading Die Material Selection Matrix (Simplified)

5.2. How Can Customization Meet Specific Production Needs?

Customization is a cornerstone of optimizing material selection for your carbide heading dies. A “one-size-fits-all” approach rarely yields the best results. Reputable die manufacturers like XILUO Mold offer extensive OEM and ODM services, providing tailored solutions that go beyond standard off-the-shelf products to meet your unique requirements.

• Tailored Carbide Grades: Based on the detailed analysis of your application (workpiece material, part geometry, machine parameters), the manufacturer can recommend or even custom-blend a carbide grade with the precise balance of hardness, toughness, and wear resistance for your carbide heading dies. This might involve adjusting cobalt content, grain size, or even incorporating specific additives.
• Optimized Die Design: Custom design ensures that the die geometry (e.g., angles, radii, tapers, bearing lengths) is perfectly matched to your material flow and stress distribution for your specific part. This prevents stress concentrations and optimizes material flow, leading to longer carbide heading die life and higher quality parts. For example, a custom die for a specific aerospace fastener might have unique internal contours to manage material flow and prevent defects, which a standard die could not achieve.
• Application-Specific Surface Treatments: While standard coatings exist, a custom approach might involve selecting a specific PVD coating (e.g., CrN for stainless steel, DLC for high-friction applications) or even developing a multi-layer coating system to address your unique wear mechanisms for carbide heading dies.
• Prototyping and Testing: For highly challenging applications, custom carbide heading die manufacturers can produce prototypes and conduct testing to validate material and design choices before committing to full-scale production. This iterative process ensures optimal performance for you.

Example: If you are producing specialized automotive fasteners from a new high-strength alloy, you might approach XILUO Mold. Instead of simply ordering a standard die, XILUO would analyze your alloy’s properties, your fastener’s complex head design, and your production volume. They might then recommend a custom YG12 carbide grade (12% Co for toughness) with a specific fine grain structure for wear resistance, combined with a custom die cavity design to manage the high forming forces and a DLC coating to prevent galling with the new alloy. This level of customization ensures your carbide heading die performs optimally, minimizing downtime and maximizing output for your unique application.

6. What is the Manufacturing Process for High-Quality Carbide Heading Dies?

The manufacturing of high-quality carbide heading dies is a meticulous multi-stage process that combines advanced material preparation, precision machining, stringent quality control, and specialized surface finishing techniques. This comprehensive approach ensures that each carbide heading die meets the exacting standards required for durability, dimensional accuracy, and optimal performance in your demanding cold forming operations.

Producing a carbide heading die that consistently delivers millions of parts is far more complex than simply shaping a piece of metal. It involves a deep understanding of metallurgy, precision engineering, and an unwavering commitment to quality at every step. From the initial selection of raw materials to the final inspection, each stage contributes to your die’s ultimate strength, wear resistance, and ability to maintain tight tolerances under extreme conditions. This intricate process is what differentiates a standard die from a high-performance, long-lasting carbide heading die.

6.1. What are the Key Stages in Carbide Die Production?

The production of a high-quality tungsten carbide heading die involves several critical stages, each requiring specialized equipment and expertise.

1. Raw Material Preparation (Powder Metallurgy):
   • Mixing: High-purity tungsten carbide (WC) powder is mixed with a binder (typically cobalt, Co) and other additives in precise ratios to achieve the desired carbide grade for your carbide heading die.
   • Milling: The mixture is wet-milled to ensure uniform particle distribution and a homogeneous blend.
   • Drying: The slurry is dried to form a fine powder.
2. Pressing/Compaction:
   • Isostatic Pressing: The mixed powder is compacted under extremely high pressure (often using Cold Isostatic Pressing – CIP) to form a “green” (un-sintered) compact. This process ensures uniform density throughout the blank for your carbide heading die.
3. Pre-sintering/Pre-forming:
   • The green compacts are heated to a lower temperature to give them enough strength for initial machining operations.
   • At this stage, the blanks are still relatively soft and can be machined into rough shapes, such as the basic cylindrical form of a carbide heading die insert.
4. Sintering:
   • The pre-formed blanks are heated in a vacuum furnace to very high temperatures (typically 1300-1600°C), below the melting point of WC but above the melting point of the cobalt binder.
   • The cobalt melts and acts as a liquid phase, bonding the WC grains together. Upon cooling, a dense, fully consolidated carbide material is formed. This process gives your carbide heading die its extreme hardness and strength.
5. Precision Machining (Post-Sintering):
   • Once sintered, the carbide is extremely hard and can only be machined using specialized techniques.
   • Grinding: Diamond grinding wheels are used to achieve the precise outer diameter, length, and critical internal features of your carbide heading die. This requires highly accurate CNC grinding machines.
   • EDM (Electrical Discharge Machining): For complex internal geometries or very small holes, EDM is often employed. This non-contact process uses electrical discharges to erode material, allowing for intricate shapes that are impossible to achieve with conventional grinding.
   • Wire EDM: Used for cutting precise contours or through-holes for your carbide heading die.
6. Lapping and Polishing:
   • The internal die cavity and critical surfaces are meticulously lapped and polished to achieve a mirror-like finish (e.g., Ra < 0.02 µm). This step is crucial for reducing friction, preventing material sticking (galling), and extending your carbide heading die life. It’s often done manually by skilled technicians or with specialized polishing machines.
7. Surface Treatment (Optional but Recommended):
   • Depending on your application, additional surface treatments like PVD coatings (TiN, TiCN, CrN, DLC) may be applied to further enhance wear resistance, reduce friction, or prevent galling on your carbide heading die.
8. Final Inspection:
   • Each carbide heading die undergoes a rigorous final inspection to verify all dimensions, surface finish, and material integrity.

The following table outlines the key equipment utilized at each stage of carbide heading die manufacturing, along with their specific purposes. This provides insight into the advanced technological processes involved in producing high-quality dies.

Table: Key Equipment Used in Carbide Heading Die Manufacturing

6.2. How is Quality Control Ensured in Die Manufacturing?

Rigorous quality control (QC) is integrated throughout the entire manufacturing process of your carbide heading dies, not just at the end. This multi-stage inspection process ensures that every die meets the highest standards of precision, material integrity, and performance.

• Raw Material Inspection: Incoming WC powder and cobalt binder are tested for purity, particle size distribution, and chemical composition to ensure they meet specifications for your carbide heading dies.
• In-Process Checks:
  • Density Measurement: After pressing and sintering, the density of the carbide blank is measured to ensure proper consolidation and absence of porosity.
  • Hardness Testing: Hardness (e.g., Rockwell A scale) is measured to confirm the carbide grade meets the specified hardness range.
  • Metallographic Examination: Samples are taken and examined under a microscope to check for proper grain size, uniform binder distribution, and absence of defects.
  • Dimensional Checks: After each machining stage, critical dimensions are measured using precision instruments (e.g., micrometers, calipers, optical comparators, CMMs) for your carbide heading die.
• Final Inspection:
  • Dimensional Verification: All final dimensions are meticulously checked against engineering drawings using advanced measuring equipment like profile projectors, optical comparators, and coordinate measuring machines (CMMs) for your carbide heading die.
  • Surface Finish Analysis: Surface roughness testers (profilometers) are used to quantify the smoothness of critical surfaces.
  • Visual Inspection: Skilled inspectors visually examine your carbide heading die for any surface defects, cracks, or imperfections.
  • Non-Destructive Testing (NDT): For highly critical carbide heading dies, techniques like ultrasonic testing may be used to detect internal flaws or voids that are not visible externally.
• Traceability: Each carbide heading die is typically marked with a unique identifier, allowing for full traceability back to the raw material batch, production date, and specific manufacturing parameters. This is crucial for your quality assurance and problem-solving.

By adhering to these stringent manufacturing and quality control protocols, companies like XILUO Mold ensure that their carbide heading dies deliver consistent, high-performance results, minimizing failures and maximizing productivity for you.

7. How Can XILUO Mold Optimize Your Carbide Heading Die Material Selection?

XILUO Mold (Dongguan Xiluo Mold Technology Co., Ltd.) stands as a leading expert in optimizing your carbide heading die material selection, leveraging over 24 years of specialized experience, a robust R&D capability, and a comprehensive one-stop manufacturing process. Our commitment to high-quality imported materials, advanced production, and rigorous quality control ensures that we provide customized, durable, and precise carbide heading die solutions tailored to your specific cold heading needs.

At XILUO Mold, we understand that the optimal carbide heading die is not just a product, but a precisely engineered solution. Our extensive experience in the fastener and cold forming industry, combined with our unique position as a one-stop R&D and manufacturing facility in China, allows us to offer unparalleled expertise in material selection and carbide heading die customization. We don’t just sell dies; we partner with you to enhance your production efficiency and product quality through intelligent tooling.

7.1. XILUO Mold’s Core Competencies in Material Optimization:

• Deep Expertise and R&D Prowess: With over 24 years in the industry, XILUO Mold possesses an unparalleled depth of knowledge in carbide heading die materials and applications. We are the only “one-stop” factory in China integrating screw mold R&D and production, and the sole enterprise capable of R&D and production of a full range of fastener and wire cold heading parts molds. This strong R&D team allows us to analyze your specific challenges and recommend the precise carbide grade and carbide heading die design that will yield the best results for you.
• Premium Material Sourcing: We understand that the foundation of a high-performance die is the quality of its raw materials. XILUO Mold strictly selects high-quality imported steel for components like flat thread rolling dies (e.g., DC53, D55) and premium tungsten carbide for your carbide heading dies. This commitment to superior input materials ensures the inherent durability and precision of our final products.
• Advanced Manufacturing and Quality Control: Our 10,000 square meter production base, staffed by over 200 skilled workers and equipped with more than 200 sets of advanced processing equipment, enables us to produce up to 2,000 molds daily. We implement stringent quality control at every stage, utilizing advanced testing equipment such as profile projectors and secondary element analyzers to guarantee dimensional accuracy, surface finish, and material integrity of your carbide heading dies.
• Comprehensive Customization (OEM & ODM): We excel in providing tailored solutions. Our OEM and ODM services mean we don’t just offer standard products; we work closely with you to understand your unique workpiece materials, part geometries, production volumes, and machine parameters. This allows us to recommend and manufacture carbide heading dies with the optimal carbide grade, specific design features, and appropriate surface treatments (polishing, heat treatment, nitriding, titanium plating) to meet your exact requirements.
• Full After-Sales Support: Our commitment extends beyond delivery. We provide comprehensive after-sales support, ensuring any issues are promptly addressed and, if necessary, replacement products are provided. This continuous support ensures your operations run smoothly and efficiently with our carbide heading dies.

7.2. Our Customization Process:

XILUO Mold’s systematic customization process ensures that your specific needs for carbide heading dies are met with precision and efficiency. This structured approach guides you from initial inquiry to final product delivery, ensuring transparency and quality at every step.

1. Preliminary Preparation: We begin by understanding your initial requirements.
2. Inquiry: We engage in a detailed discussion of your application, workpiece, part, and machine specifications.
3. Quotation: We provide you with a competitive quote based on the proposed solution.
4. Order Confirmation: We formalize the agreement with your order confirmation.
5. Provide Solutions: We present you with the optimized material selection and carbide heading die design proposal.
6. Mechanical Drawing: We create precise engineering drawings for your approval.
7. Production Planning & Material Purchasing: We meticulously source the exact high-quality materials required.
8. Mass Production: We manufacture your carbide heading dies using advanced equipment and strict quality control.
9. Customer Confirms: We seek your approval of the finished products.
10. Inspection: We conduct final rigorous quality checks.
11. Packing: We ensure secure packaging for transport.
12. Shipping: We arrange for timely delivery to your location.

7.3. Client Testimonials:

Our clients consistently praise the quality and longevity of our products, highlighting the real-world impact of our optimized carbide heading dies. These testimonials underscore our ability to deliver on our promise of “durability and precision” at competitive prices, making your work easier through our professional expertise, innovation, and quality-assured carbide heading dies.

• Jack (CEO): “Goods received, the effect is really good, but can it be cheaper next time? I will buy more~”
• Justin (CEO): “Already used today. Indeed, as you said, the life span is indeed longer than what I bought before. I will send you a new inquiry later, help me quote.”
• John (CEO): “Good product quality, commendable, in use, no problems so far.”

Contact XILUO Mold today to discuss how our expertise in material selection and custom carbide heading die manufacturing can elevate your cold heading operations.

• Address: No. 2, Bihulou 1st Road, Songbai Lang Village, Dalang Town, Dongguan City, Guangdong Province, China
• Email: sunny@xiluomold.com
• Phone/Whatsapp: +86 13266059557 (Shirley)

Conclusion

Optimizing material selection for your carbide heading dies is a critical investment that directly impacts your production efficiency, your product quality, and your overall operational costs. By understanding the unique properties of tungsten carbide, the nuances of different carbide grades, and the influence of design, manufacturing precision, and surface treatments, you can significantly extend your carbide heading die lifespan and achieve superior results.

The journey to an optimal carbide heading die begins with a deep dive into the specific demands of your application—from the hardness of your workpiece material to the complexity of your part geometry and your required production volume. Choosing the right carbide grade, ensuring meticulous design and manufacturing, and applying appropriate surface treatments are not merely technical specifications but strategic decisions that safeguard your investment and enhance your competitive edge. Companies like XILUO Mold, with their extensive experience, advanced R&D, and comprehensive customization capabilities, are invaluable partners in navigating this complex landscape. By collaborating with experts who prioritize material excellence and precision engineering, you can transform your cold heading operations, minimize downtime, and consistently produce high-quality fasteners that meet the most stringent industry standards with our carbide heading dies.
