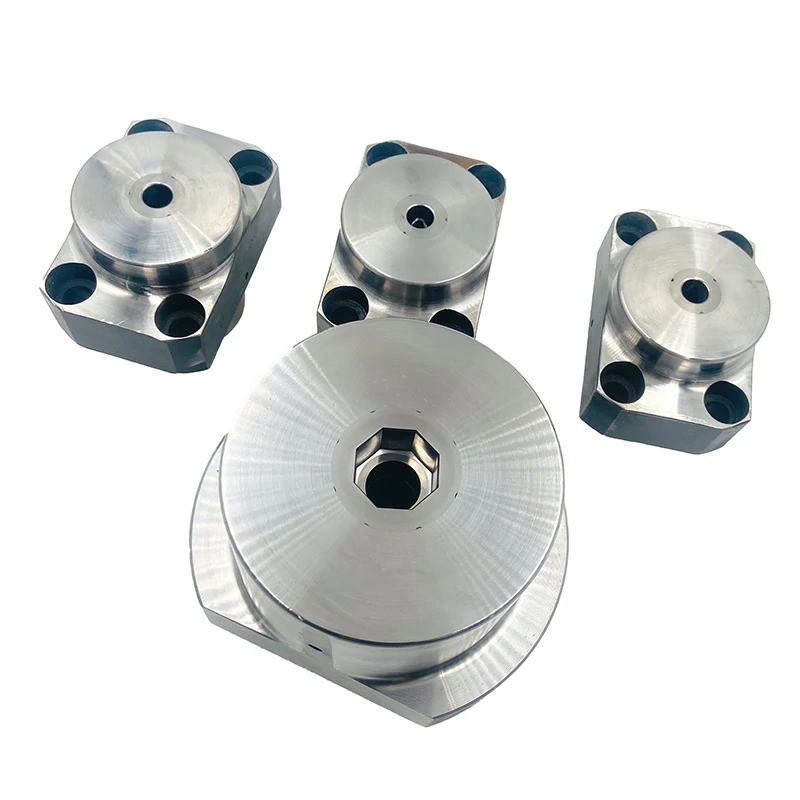

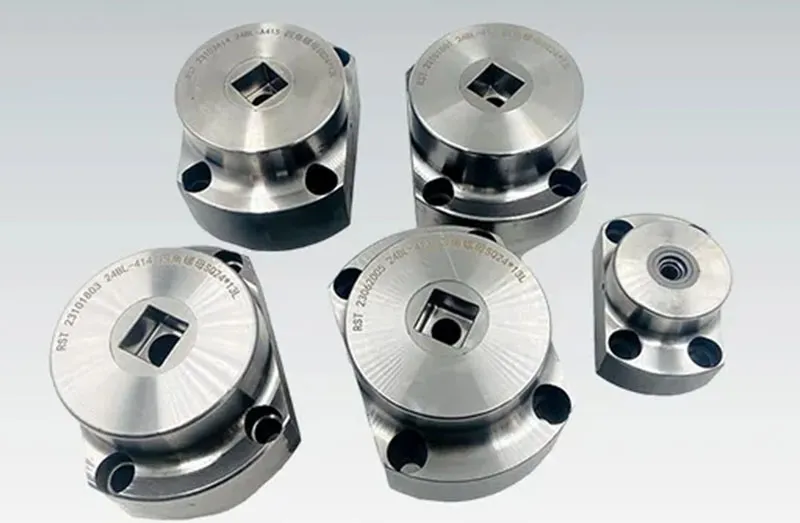

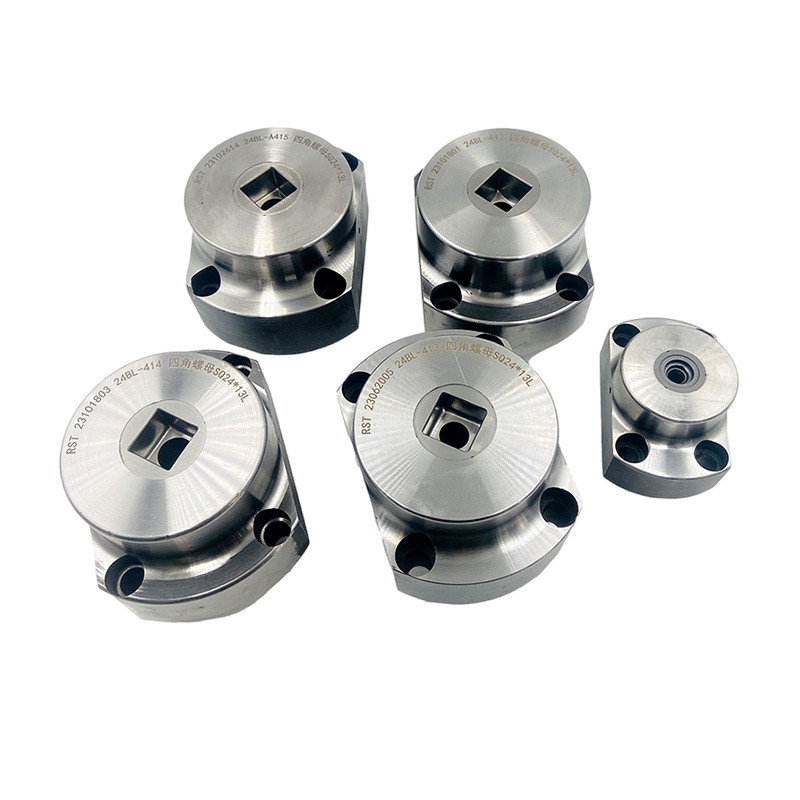

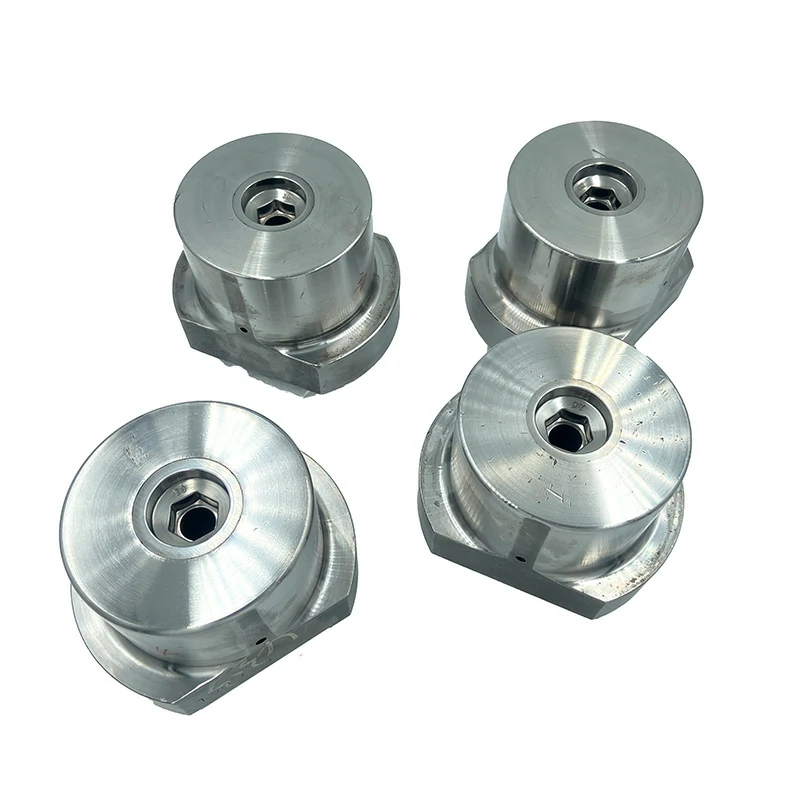

Nut Forming Dies are precision tools used in cold heading or hot forging processes to shape metal wire (carbon steel, stainless steel, alloy steel, etc.) into standard or custom nuts, such as hex nuts, flange nuts, nylon lock nuts, and more. At XILUO Mold, our dies are engineered for exceptional dimensional accuracy, surface finish, and durability, ensuring high-volume production efficiency for industries like automotive, construction, machinery, and electronics.
Type | Carbide Nut Dies | HSS (High-Speed Steel) Dies | XILUO Advantage |
Key Features | Extreme wear resistance, ideal for high-volume production | Cost-effective, balanced toughness for medium batches | Material Sourcing: We use imported carbide (e.g., YG15, YG20) and premium HSS grades (e.g., SKH-51). |
Best For | Automotive-grade nuts, hardened steel nuts | Standard hex nuts, general-purpose fasteners | Custom Solutions: We recommend carbide for >500K cycles or HSS for budget-friendly projects. |
Surface Treatment | Titanium coating (TiN), nitriding | Precision polishing, oxidation resistance | Enhanced Durability: 20+ surface treatments to reduce friction and extend die lifespan by 30-50%. |
Type | Single-Station Dies | Multi-Station Dies | XILUO Advantage |
Design | Simple structure for basic nut shapes | Integrated multi-step forming for complex nuts (e.g., flanged, lock nuts) | Innovative Engineering: Patented multi-station designs ensure seamless transitions between forming stages. |
Efficiency | Fast setup, ideal for small batches | High-speed production with ±0.005mm tolerance | Speed-to-Market: 7-day lead time for standard dies; 15 days for fully custom designs. |
Applications | M6-M24 hex nuts, standard DIN/ISO nuts | Automotive lock nuts, flanged nuts, non-standard threads | Complex Geometry Expertise: We specialize in dies for asymmetrical or thin-walled nuts. |
China’s only integrated manufacturer with in-house R&D, material selection, production, and testing.
50+ countries served, with dies lasting 2-3x longer than industry averages.
From prototyping to mass production, we deliver solutions tailored to your press machine specifications.
1.Material Excellence
1.YG15/YG20 Series: Ultra-fine grain structure (0.5-0.8µm) for extreme wear resistance.
2.Certifications: ISO 9001, JIS B 4053 compliant.
3.Best For: High-speed production (>300 PPM) of automotive flange nuts (e.g., DIN 6923).
1.SKH-51 (M2 Equivalent) : 65-67 HRC hardness with 20% higher toughness than standard HSS.
2.Application: Cost-effective solutions for M6-M24 hex nuts (ISO 4032).
1.Impact Resistance: 2x higher than D2 steel, ideal for thick-wall nuts (e.g., ASTM A563).
2.Precision Engineering
1.Critical Dimensions: ±0.005mm (thread pitch, flange diameter).
2.Industry Comparison: 3x tighter than average ±0.015mm competitors.
1.CMM Verification: Mitutoyo Crysta-Apex S 10,000 series with 3D contour scanning.
3.Surface Treatment Mastery
Treatment | Benefits | Performance Data | Ideal For |
TiN Coating | 50% lower friction, anti-galling | 800 HV hardness, 0.3µm thickness | Stainless steel nuts (AISI 304/316) |
Plasma Nitriding | 30% increased surface fatigue life | 0.1-0.2mm case depth | High-cycle automotive lock nuts |
Cryogenic | Eliminates 95% residual stress | -196°C deep freeze stabilization | Large-diameter nuts (M30+) |
Custom Hybrid | Tailored to client’s feedstock | Contact for proprietary solutions | Exotic alloys (Inconel, titanium) |
Batch-level material certificates (MTC) with chemical composition reports.
1.Hardness: Wilson Rockwell & Vickers testers (ASTM E18/E384 compliant).
2.Wear Simulation: Bruker UMT TriboLab for 100K+ cycle validation.
REACH, RoHS, and IATF 16949 for automotive clients.
1.Material: Inconel 718
2.Challenge: Die cracking after 10K cycles in hot forging (980°C)
3.XILUO Solution: Gradient carbide die with AlCrN coating
4.Result: 85K cycles achieved, passed Nadcap AC7108 testing
