Screws are ubiquitous. They hold together everything from smartphones to skyscrapers. These small but mighty fasteners play a critical role in countless industries. The vast majority of screws are produced through a high-speed, efficient process called cold heading. At the heart of this process lies an essential tool: the screw header punch.

This article will explore what a header punch is, how it works, its various types, the materials it’s made from, and the precision manufacturing it undergoes. Understanding this vital component highlights its crucial role in producing high-quality, reliable fasteners.

What is a Screw Header Punch and How Does It Work?

A screw header punch is a highly precise tooling component. It is used within cold heading machines. Its primary function is to form the head of a screw, bolt, or rivet from a wire blank.

Role in Cold Heading

The cold heading process begins with raw wire. This wire is cut into specific lengths, forming individual blanks. These blanks are then fed into the heading machine. Here, the header punch applies immense force against a stationary die. This action rapidly deforms the metal.

Working Principle: Cold Forming by Displacement

The header punch operates on a principle of material displacement. It is a cold forming process. The punch does not cut or remove metal. Instead, it applies tremendous pressure to the blank. This forces the metal to flow plastically into the punch’s intricate cavity. This cavity has the exact shape of the desired screw head.

• Head Formation: The punch’s carefully designed face forms the specific external shape of the head (e.g., hex, round, pan). If it’s a recess punch, its internal geometry simultaneously forms the drive recess (e.g., Phillips, Torx, Pozi).
• Precision & Force: The process demands extreme precision. The punch must align perfectly with the die. The forces involved are immense, often hundreds of tons, yet the resulting head must be flawlessly formed.

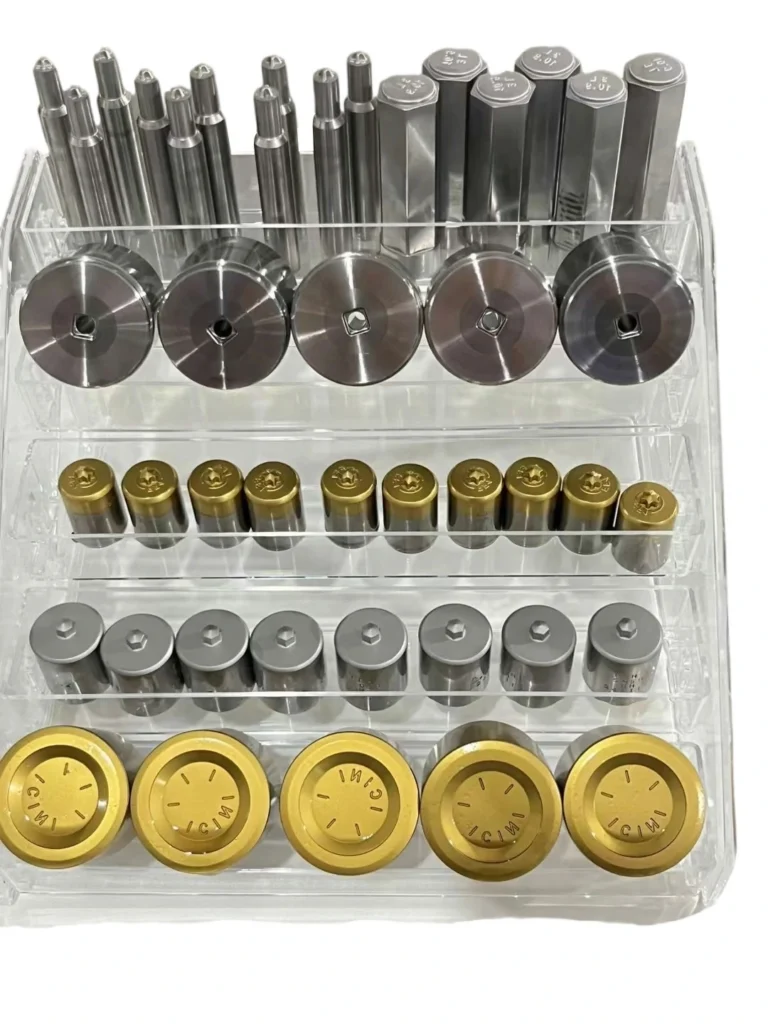

Types of Screw Header Punches: Tailored for Every Fastener

Header punches come in various designs. Each design is tailored to produce specific screw head types or optimize the manufacturing process.

Categorization by Head Type/Recess

• Recess Punches: These punches form the internal drive feature of a screw head.
  • Examples: Phillips, Pozi, Torx (Star), Square/Robertson. These are crucial for creating the slots where screwdrivers engage.
• Forming Punches: These primarily form the external shape of the screw head.
  • Examples: Hex Head, Round Head, Pan Head, Flat Head (which forms a countersunk profile).
• Combination Punches: Some advanced punches are designed to do both. They form an external head shape and an internal recess simultaneously in a single strike.

Categorization by Construction

• One-Piece Punches: These are simple, monolithic designs. The entire punch is made from a single block of material. They are straightforward to manufacture.
• Two-Piece (or Multi-Piece) Punches: These are more complex. They consist of a casing or holder and a separate insert. The insert forms the critical head-forming cavity or recess.
  • Advantages: This design is often more cost-effective. Only the worn insert needs replacement, not the entire punch. It also allows for using superior wear-resistant materials (like tungsten carbide) specifically for the insert, while the casing provides necessary toughness.

Specialized Punches

Beyond standard types, custom designs exist. These punches cater to unique fasteners, specialized applications, or proprietary head designs.

Materials for Screw Header Punches: The Foundation of Durability

Screw header punches operate in an incredibly demanding environment. The continuous high pressure, abrasion, and repetitive impacts require materials with exceptional properties.

Key Material Properties Required

• High Hardness: This is essential to resist wear and permanent deformation under extreme loads.
• Excellent Wear Resistance: Punches must maintain their precise shape over hundreds of thousands, or even millions, of cycles.
• High Compressive Strength: The material must withstand the immense heading forces without collapsing or deforming.
• Good Toughness: This allows the punch to absorb energy and deform plastically without fracturing under shock loads. It prevents chipping.
• Good Fatigue Resistance: Punches endure repetitive stress. High fatigue resistance ensures they do not fail prematurely due to micro-cracks from cyclic loading.

Common Materials Used

• High-Speed Steel (HSS): Grades like M2 and M42 are common. They offer a good balance of hardness, toughness, and cost-effectiveness. HSS punches are suitable for a wide range of applications.
• Powder Metallurgical (PM) Steels: Grades such as ASP23 and CPM 10V are increasingly popular. These steels offer superior wear resistance and toughness. Their fine, uniform grain structure and carbide distribution make them ideal for demanding applications.
• Tungsten Carbide (WC): This material boasts extreme hardness and wear resistance. It is often used for inserts in two-piece punches. Tungsten carbide punches are ideal for very high-volume production, rolling hard materials, or forming complex recesses.
• Other Tool Steels: Specialized cold work steels are also employed, chosen for specific combinations of toughness and wear resistance.

Precision Manufacturing Process of Header Punches

Manufacturing a screw header punch is a highly intricate process. It demands extreme precision at every stage.

• Blank Preparation: The process begins with machining raw tool steel blanks into the approximate shape of the punch.
• Heat Treatment: This is a critical step. Controlled heating, quenching, and tempering processes are applied. This transforms the steel’s microstructure. It achieves the precise hardness, toughness, and core strength required for durability.
• Precision Grinding & EDM: The intricate geometries of the punch face and head cavity are formed with extreme accuracy. This often involves advanced precision grinding techniques or Electrical Discharge Machining (EDM).
• Polishing & Lapping: The punch surfaces are polished and lapped to achieve a mirror-like finish. This smooth surface reduces friction during operation. It also improves material flow and prevents galling (material sticking to the punch).
• Surface Coatings: After polishing, punches often receive specialized surface coatings.
  • Purpose: These thin, hard layers (applied via PVD or CVD) further enhance wear resistance, reduce friction, prevent galling, and significantly extend tool life.
  • Common Coatings: TiN (Titanium Nitride), TiCN (Titanium Carbo-Nitride), AlTiN (Aluminum Titanium Nitride), and CrN (Chromium Nitride) are frequently used, each offering specific benefits.
• Rigorous Quality Control: Every punch undergoes thorough inspection. This checks dimensional accuracy, surface finish, and hardness. This ensures the punch will perform optimally and consistently in high-speed production environments.

Importance and Advantages of High-Quality Header Punches

The quality of a screw header punch directly impacts the quality and cost of the final fastener.

• Fastener Quality: A precisely manufactured punch ensures consistent head geometry and proper drive recess formation. This prevents defects like cracks, burrs, or incomplete heads.
• Production Efficiency: High-quality punches offer significantly longer tool life. This reduces machine downtime for tool changes, leading to higher output and consistent production.
• Cost Reduction: Fewer tool replacements and reduced scrap rates directly lower overall manufacturing costs per fastener.
• Material Savings: Precision cold forming optimizes material usage. It minimizes waste, contributing to overall material savings.
• Enhanced Fatigue Life of Fastener: Properly formed screw heads, free from micro-cracks caused by inferior tooling, contribute to the fastener’s improved strength and fatigue durability.

Maintenance and Care for Extended Punch Life

Even the highest quality header punches require proper care to maximize their lifespan and performance:

• Proper Setup: Correct alignment within the cold heading machine is crucial. Misalignment can lead to premature wear or breakage.
• Lubrication: Using appropriate cold heading lubricants ensures smooth material flow and reduces friction, minimizing punch wear.
• Regular Inspection: Periodically inspecting punches for signs of wear, chipping, or micro-cracks allows for early detection and intervention.
• Regrinding/Resurfacing: Timely reconditioning by skilled technicians can restore the punch’s precision, significantly extending its usable life.
• Proper Storage: Storing punches in a clean, dry, and protected environment prevents corrosion and accidental damage when not in use.

Conclusion: The Backbone of Fastener Excellence

The screw header punch is far more than just a tool; it is the backbone of fastener excellence. It is critical for creating the precise, durable heads that define a quality screw. Effective punches result from a sophisticated interplay of optimal material selection, precise manufacturing processes, and diligent maintenance. As fastener demands grow, continuous advancements in materials and manufacturing techniques will ensure header punches remain at the forefront of cold heading technology.
