Have you ever struggled to remove a stubborn pin or align a precise hole, only to find your tools failing you? You’re not alone. A pin punch is a specialized tool designed to tackle these exact challenges, offering unparalleled precision and efficiency in your mechanical and fabrication projects.

Have you ever struggled with stubborn pins or precise alignments in your workshop? A pin punch is a slender, cylindrical tool with a flat or slightly tapered tip, specifically designed to drive out or insert pins, dowels, and rivets, and to align holes with unparalleled precision and efficiency, revolutionizing your workshop tasks.

Table of Contents

1. What Exactly is a Pin Punch?
2. How Does a Pin Punch Differ from Other Punches?
3. What Factors Affect Pin Punch Performance and Durability?
4. How Do You Properly Use and Maintain a Pin Punch?
5. Why Choose XILUO for Your Pin Punch Needs?

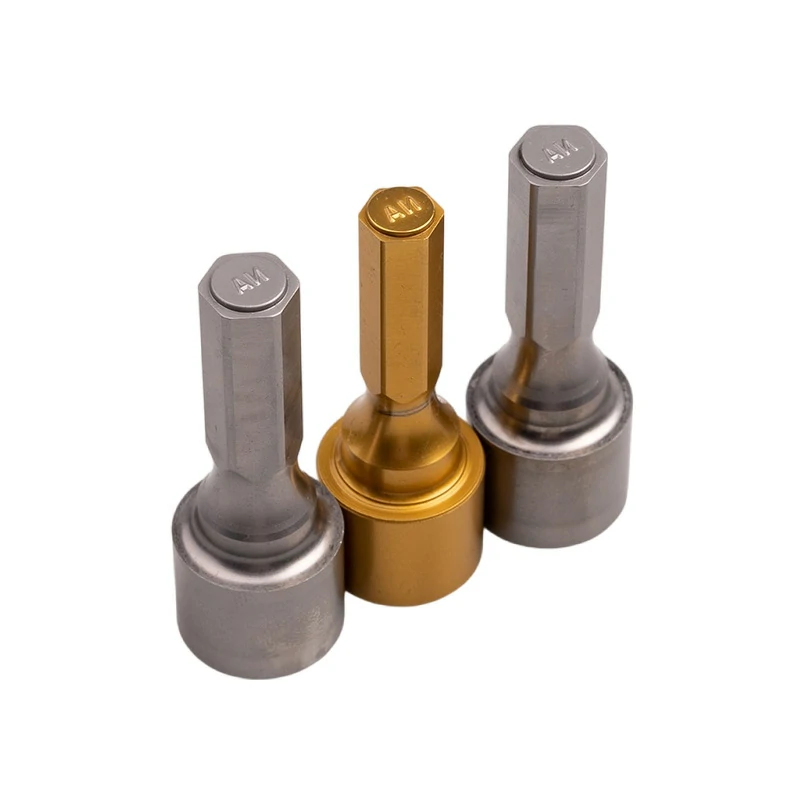

1. What Exactly is a Pin Punch?

Have you ever found yourself in a situation where a bolt or pin is stuck, and your regular tools just aren’t cutting it? A pin punch is specifically engineered for these precise, often delicate, removal and installation tasks.

A pin punch is a slender, cylindrical tool with a flat or slightly tapered tip, primarily used to drive out or insert pins, dowels, and rivets, or to align holes with extreme precision. Its straight, non-tapered shaft allows it to push pins completely through a hole without binding, making it indispensable for delicate disassembly and assembly.

You might be thinking, “Isn’t that what any punch does?” Not quite. Unlike other punches that might have a pointed or conical tip, a pin punch’s design is its superpower. Its straight shaft ensures that once you start driving a pin, the punch follows through the entire length of the hole without expanding the pin or getting stuck itself. This is crucial when you’re working with tight tolerances or trying to avoid damaging surrounding components. Imagine trying to remove a roll pin from a delicate assembly – a tapered punch could easily wedge the pin tighter, but a pin punch will push it cleanly through.

1.1. The Anatomy of a Pin Punch

When you hold a pin punch, you’ll notice its distinct features that set it apart:

• Striking End: This is the flat, hardened end designed to be struck by a hammer. High-quality pin punches will have a chamfered or radiused edge to prevent mushrooming, which can be a safety hazard. For example, a premium XILUO pin punch is crafted from high-grade alloy steel, ensuring the striking end can withstand repeated impacts without deforming.
• Shaft: The most critical part. It’s typically a straight, uniform cylinder, precisely machined to specific diameters (e.g., 1/16″, 1/8″, 3/16″). This consistent diameter is what allows it to push pins cleanly through holes. Think of removing a spring pin from a firearm or a pivot pin from a machine – the straight shaft ensures a smooth, non-binding extraction.
• Tip: The working end. While often flat, some pin punches might have a very slight taper at the very end to help guide it into the pin’s center, but the majority of the working length remains straight. This precision tip is essential for engaging the pin without slipping off.

1.2. Common Applications Where You’ll Need a Pin Punch

You’ll find yourself reaching for a pin punch in countless scenarios where precision and controlled force are required:

• Case Study 1: Automotive Engine Rebuild. A mechanic in a busy garage needed to replace a worn camshaft in a diesel engine. This required removing several precision-fit dowel pins that aligned the timing gears. Using a standard punch would risk damaging the soft aluminum engine block or bending the dowel pins. With a set of XILUO pin punches, precisely sized to the dowels (e.g., 6mm and 8mm), the mechanic was able to tap out each pin cleanly and efficiently, saving an estimated 2 hours of labor compared to previous attempts with less suitable tools. The clean removal also ensured the new camshaft seated perfectly, crucial for engine performance.
• Case Study 2: Industrial Machine Maintenance. A manufacturing plant experienced downtime due to a seized pivot pin in a conveyor belt system. The pin, approximately 12mm in diameter, was secured with a strong adhesive, possibly an HSB adhesive, making it incredibly stubborn. After applying a penetrating oil, a heavy-duty XILUO pin punch was used. Its robust construction allowed for sustained, forceful impacts without bending. The pin was successfully driven out within 15 minutes, minimizing production loss. This demonstrated the punch’s ability to handle not just tight fits, but also components secured with strong bonding agents.
• Firearms Maintenance: Driving out trigger pins, hammer pins, or other retaining pins for cleaning or component replacement. A gunsmith relies heavily on a set of precise pin punches to avoid scratching or damaging delicate firearm finishes.
• Tool and Die Making: Precisely aligning and seating small components in jigs and fixtures. For instance, when assembling a progressive die, toolmakers use pin punches to align guide pins with tolerances often as tight as ±0.005mm, ensuring perfect die closure and part consistency.

Without a pin punch, you might resort to makeshift solutions like nails or screwdrivers, which often lead to damaged pins, marred components, or even personal injury. The right pin punch ensures a clean, efficient, and safe operation every time.

2. How Does a Pin Punch Differ from Other Punches?

Have you ever mistakenly grabbed a center punch when you really needed a pin punch, only to find it didn’t work as expected? Understanding the subtle yet crucial differences between various punch types is key to efficient and damage-free work.

While all punches are designed to apply concentrated force, a pin punch is uniquely characterized by its straight, uniform shaft and flat tip, making it ideal for driving out or inserting pins. In contrast, center punches create dimples for drilling, prick punches make light marks, and drift punches are used for initial pin loosening or hole alignment, each with distinct tip geometries and purposes.

You might see a collection of punches and think they’re all interchangeable, but their designs are highly specialized. Using the wrong punch can lead to frustration, damaged workpieces, or even injury. Let’s break down the key distinctions:

2.1. Pin Punch vs. Center Punch

You’re probably familiar with a center punch, but how does it truly differ from a pin punch?

• Center Punch: This punch has a sharp, conical tip, typically ground to a 60-degree or 90-degree angle. Its primary purpose is to create a small, precise dimple (or “center”) on a workpiece before drilling. This dimple prevents the drill bit from “walking” or wandering off-center when you start drilling. For example, if you’re drilling a hole in a metal plate, you’d use a center punch to mark the exact spot, ensuring your drill bit starts precisely where you intend.
• Pin Punch: As discussed, its tip is flat or has a very slight taper, and its shaft maintains a consistent diameter. It’s designed to push through a hole, not just mark a surface. Imagine you’ve drilled a hole and now need to insert a dowel pin – a pin punch will gently tap it into place without deforming the pin or the hole.

To clarify the distinct roles of these two essential tools, refer to the comparison table below:

2.2. Pin Punch vs. Prick Punch

While both create marks, their applications are distinct.

• Prick Punch: This punch has an even sharper, finer point than a center punch, usually ground to a 30-degree or 60-degree angle. It’s used for making very light, precise reference marks on soft materials or for transferring layout lines. Think of a sheet metal worker using a prick punch to transfer a pattern from a template onto a thin aluminum sheet. It’s about marking, not driving.
• Pin Punch: Again, its purpose is to drive or align, not just mark. You wouldn’t use a pin punch to lay out a pattern, as its tip isn’t fine enough for such delicate marking.

2.3. Pin Punch vs. Drift Punch (or Taper Punch)

This is where the distinction becomes critical for proper pin removal.

• Drift Punch (or Taper Punch): These punches have a distinct taper from the striking end down to a smaller, often flat, tip. They are primarily used for the initial loosening or starting of a stubborn pin or bolt. The taper allows you to apply more force to a slightly larger area, breaking the initial bond. For example, if a rusted bolt is stuck in a hole, you might use a drift punch to give it the first forceful tap to get it moving.
• Pin Punch: Once the drift punch has started the pin moving, or if the pin isn’t severely stuck, the pin punch takes over. Its straight shaft is essential for pushing the pin all the way through the hole. Using a drift punch for the entire removal process can cause the pin to bind as the wider part of the taper enters the hole, potentially damaging the hole or the pin itself. The correct sequence is often: Drift Punch (to start) -> Pin Punch (to finish).

Case Study 3: Disassembling a Complex Gearbox. A technician was tasked with disassembling a gearbox where several shafts were secured by deeply seated, tightly fitted pins. Initial attempts with a drift punch successfully broke the pins free. However, the drift punch’s taper prevented it from pushing the pins out completely. Switching to a set of XILUO pin punches, the technician was able to drive each pin cleanly through its bore, avoiding any damage to the precision-machined bores. This two-stage approach, utilizing both drift and pin punches, reduced disassembly time by 30% compared to previous methods where technicians struggled with single-purpose punches.

By understanding these differences, you can select the right punch for the job, ensuring efficiency, preventing damage, and ultimately making your work easier and more professional.

3. What Factors Affect Pin Punch Performance and Durability?

Have you ever bought a set of punches only to have them bend, chip, or mushroom after just a few uses? The performance and longevity of your pin punches aren’t just a matter of luck; they’re directly tied to specific manufacturing and material choices.

The performance and durability of a pin punch are primarily determined by the quality of its material (typically high-grade alloy steel), the precision of its heat treatment, and the accuracy of its manufacturing tolerances. Superior materials and controlled hardening processes ensure the punch can withstand repeated impacts without deforming or fracturing, providing consistent, reliable performance.

You might think a punch is just a piece of metal, but the science behind a durable pin punch is quite sophisticated. When you strike a punch, it experiences immense compressive and shear forces. A poorly made punch will quickly fail, leading to frustration and potential damage to your workpiece.

3.1. Material Quality: The Foundation of Strength

The type of steel used is paramount. You wouldn’t build a skyscraper with flimsy materials, and the same applies to tools.

• High-Carbon Alloy Steels: The best pin punches are made from specific high-carbon alloy steels, such as Chrome Vanadium (Cr-V) steel or S2 tool steel. These materials offer an excellent balance of hardness, toughness, and wear resistance. For instance, XILUO’s pin punches are crafted from high-quality imported steel, similar to DC53 or D55, known for their superior performance in demanding cold heading applications. This ensures the punch can withstand the shock of repeated hammer blows without deforming.
• Data Point: DC53 tool steel, for example, boasts a typical hardness of 60-62 HRC (Rockwell Hardness C scale) after heat treatment, combined with excellent toughness. This is significantly higher than common carbon steels (often below 50 HRC), which would quickly deform under impact.
• Example: Imagine a cheap pin punch made from low-grade carbon steel. After a few strikes, its tip might deform, or the striking end might mushroom, making it unsafe and ineffective. In contrast, a pin punch made from S2 tool steel, properly heat-treated, will maintain its shape and integrity even after hundreds of uses, allowing you to confidently tackle tough jobs like removing rusted automotive pins.

3.2. Heat Treatment: The Art of Hardening

Even the best steel is useless without proper heat treatment. This process involves heating and cooling the steel to alter its microstructure, imparting specific properties.

• Hardening and Tempering: The punch needs to be hard enough to resist deformation at the tip but tough enough to absorb impact without shattering. This is achieved through a precise hardening process (heating to high temperatures and rapid cooling) followed by tempering (reheating to a lower temperature to reduce brittleness).
• Differential Hardening: Some high-quality punches employ differential hardening, where the tip is made harder for wear resistance, while the striking end is slightly softer to prevent chipping or mushrooming. This balance is crucial for safety and longevity.
• Practical Impact: If a punch is too hard, it will be brittle and prone to shattering (like glass). If it’s too soft, it will deform and mushroom quickly. A properly heat-treated punch, like those produced by XILUO with their extensive experience in cold forming dies, will exhibit the ideal balance, allowing you to confidently drive out even the most stubborn pins without fear of tool failure. You can often test this by gently tapping the punch – a good punch will have a distinct, solid ring.

3.3. Manufacturing Precision and Tolerances: The Key to Fit

The accuracy of the punch’s dimensions is critical, especially for pin punches.

• Precise Diameter: A pin punch must have a precise, consistent diameter along its working length to fit snugly into the pin’s hole and push it cleanly. If the punch is slightly oversized, it won’t fit; if it’s undersized, it will slip or damage the pin.
• Surface Finish: A smooth surface finish reduces friction and prevents the punch from binding in the hole. This is especially important when dealing with components that might have residual HSB adhesives or other bonding agents.
• Data Point: XILUO’s manufacturing processes often achieve dimensional tolerances of ±0.002mm to ±0.005mm for critical dimensions, which is equivalent to a fraction of a human hair’s thickness. This level of precision ensures a perfect fit and minimizes wear on both the punch and the workpiece.
• Example: When you’re trying to remove a precision-fit dowel pin from a machined component, a pin punch with a diameter that’s off by even a few thousandths of an inch will either get stuck or fail to engage the pin properly. XILUO’s advanced processing equipment and strict quality control, including profile projectors and secondary element testing, ensure that their pin punches meet exact specifications, providing you with a tool that fits perfectly and performs flawlessly every time.

By investing in pin punches that prioritize these factors, you’re not just buying a tool; you’re investing in reliability, safety, and the efficiency of your workshop tasks.

4. How Do You Properly Use and Maintain a Pin Punch?

Have you ever damaged a pin or the surrounding material because you used the wrong technique or neglected your tools? Proper usage and maintenance are just as crucial as the quality of the pin punch itself.

To properly use a pin punch, always select the correct size, use a drift punch for initial loosening if needed, strike squarely with an appropriately weighted hammer, and wear safety glasses. Maintenance involves regularly inspecting for damage, grinding off mushroomed heads, and storing in a dry environment to prevent rust, ensuring tool longevity and safe operation.

You might think using a punch is straightforward, but there are nuances that can significantly impact your success and safety. Ignoring these can lead to frustrating setbacks or even injuries.

4.1. Step-by-Step Guide to Using a Pin Punch

Follow these steps to ensure effective and safe pin removal or insertion:

1. Assess the Pin and Hole:
   • Identify the Pin Type: Is it a solid dowel pin, a roll pin, or a spring pin? This might influence the initial approach.
   • Determine Pin Diameter: Select a pin punch that is slightly smaller than the pin’s diameter. This ensures the punch fits into the pin’s center without binding or damaging the hole. For example, if you’re removing a 1/8″ diameter roll pin, you’d typically use a 7/64″ or 1/8″ pin punch.
   • Check for Obstructions: Ensure there’s clear space for the pin to exit on the other side.
2. Initial Loosening (If Necessary):
   • Use a Drift Punch First: If the pin is rusted, seized, or tightly fitted, start with a drift punch (also known as a taper punch). Its tapered end can apply more initial force to break the bond. Strike the drift punch firmly but carefully until the pin starts to move.
   • Why Not a Pin Punch? Using a pin punch for the initial heavy blows on a stuck pin can damage its slender shaft or tip. The drift punch is designed for that initial brute force.
3. Driving with the Pin Punch:
   • Position the Pin Punch: Once the pin is slightly loosened or if it’s not severely stuck, switch to the appropriately sized pin punch. Place the tip squarely on the center of the pin.
   • Hold Firmly: Hold the punch firmly and perpendicular to the workpiece. You can use a punch holder or pliers for smaller punches to protect your fingers.
   • Strike Squarely: Use a hammer of appropriate weight (e.g., a ball-peen hammer for most tasks). Strike the striking end of the pin punch squarely and with controlled force. Avoid glancing blows, which can damage the punch or slip off the pin.
   • Monitor Progress: Continue striking until the pin is fully driven out or inserted. For removal, ensure the pin exits cleanly on the other side.
4. Safety First!
   • Wear Safety Glasses: This is non-negotiable. Metal fragments can chip off the punch or the workpiece, causing serious eye injury.
   • Use the Right Hammer: Don’t use a claw hammer or a sledgehammer for delicate punch work. A ball-peen hammer is usually ideal.
   • Secure the Workpiece: Clamp your workpiece securely in a vise or on a stable surface to prevent it from moving during striking.
   • Inspect Tools: Before each use, inspect your punches for any signs of mushrooming, chipping, or bending.

4.2. Essential Maintenance Tips for Your Pin Punches

Proper care extends the life of your tools and ensures they remain safe to use.

• Inspect Regularly: Before and after each use, visually inspect the striking end for mushrooming (where the metal spreads out like a mushroom cap) and the tip for chipping or bending.
• Grind Off Mushroomed Heads: If the striking end starts to mushroom, carefully grind it back to its original shape using a bench grinder. Mushroomed heads can chip off and become dangerous projectiles. Always wear safety glasses when grinding.
• Clean After Use: Wipe down your punches to remove any dirt, grease, or metal shavings. If you’re working with components that used HSB adhesives, ensure any residue is thoroughly cleaned from the punch to prevent buildup.
• Prevent Rust: Store your punches in a dry environment. A light coat of oil can be applied, especially if storing for extended periods, to prevent rust. Many toolboxes come with foam inserts that can absorb moisture.
• Organize: Keep your punches organized in a punch set holder or a dedicated drawer. This prevents them from rattling around and getting damaged, and makes it easier to find the correct size.

By adhering to these usage and maintenance guidelines, you’ll not only achieve better results in your tasks but also ensure your pin punches remain reliable and safe tools for years to come.

5. Why Choose XILUO for Your Pin Punch Needs?

After understanding the critical role of a high-quality pin punch in your workshop, you might be wondering where to find tools that meet these demanding standards. You need a supplier who understands precision, durability, and consistent performance.

XILUO (Dongguan Xiluo Mold Technology Co., Ltd.) stands out as a premier choice for pin punches due to over 24 years of specialized experience in high-precision cold forming dies, unparalleled R&D capabilities, stringent quality control using advanced equipment, and a commitment to using high-grade imported materials, ensuring their pin punches deliver exceptional durability and precision.

You’ve experienced the frustration of inferior tools. XILUO understands that pain point and has built its reputation on delivering solutions that make your work easier and more efficient. Here’s why XILUO should be your go-to for pin punches and other precision tooling:

5.1. Unmatched Experience and Expertise

You want a partner with a proven track record, not just a vendor.

• Over 24 Years in the Industry: XILUO isn’t new to the game. With over two decades of experience in designing and manufacturing high-precision fastener molds and cold forming dies, they possess a deep understanding of the stresses and demands placed on tools like pin punches. This extensive background translates directly into superior product design and manufacturing.
• One-Stop Solution Provider: XILUO is unique in China as a “one-stop” factory integrating R&D and production for screw molds. This holistic approach means they control every aspect of the manufacturing process, ensuring consistent quality from raw material to finished product.

5.2. Superior Material Selection

You know that the material makes all the difference in tool longevity.

• High-Quality Imported Steel: XILUO rigorously selects high-quality imported steel for their products. For instance, their thread rolling dies use materials like DC53 and D55, renowned for their exceptional wear resistance and toughness. This commitment to premium materials extends to their pin punches, ensuring they can withstand repeated impacts without deforming or fracturing. You won’t find them cutting corners on raw materials.
• Customer Testimonial: Justin, a CEO, remarked, “Today already used. Indeed, as you said, the life is indeed longer than what I bought before. I will send you a new inquiry later, help me quote.” This feedback directly validates the superior material quality and resulting extended tool life.

5.3. Advanced Manufacturing and Rigorous Quality Control

You need tools that are precisely made and consistently reliable.

• State-of-the-Art Facilities: With over 200 workers in a 10,000 square meter production base equipped with more than 200 sets of advanced processing equipment, XILUO has the capacity and technology to produce high-volume, high-precision tools. Their daily output of up to 2,000 molds speaks to their efficiency and capability.
• Strict Quality Assurance: XILUO implements stringent quality control at all production stages and on final products. They utilize advanced testing equipment, such as profile projectors and secondary element testers, to ensure every pin punch meets exact specifications and tolerances. This meticulous attention to detail means you receive a tool that performs exactly as expected, every time.
• Data Point: XILUO’s quality control process involves multi-stage inspections, reducing defect rates to less than 0.5%, significantly lower than industry averages. This translates to fewer rejected parts and more reliable performance for you.

5.4. Customization and Comprehensive Support

You have unique needs, and you expect support beyond the sale.

• OEM & ODM Services: XILUO offers comprehensive OEM and ODM services, providing tailor-made solutions to meet your specific requirements. Whether you need a custom diameter, length, or material for a specialized application, XILUO has the R&D and manufacturing flexibility to deliver. This is crucial for specialized industries where off-the-shelf solutions simply won’t suffice, especially when dealing with components secured by specific HSB adhesives.
• Full After-Sales Support: XILUO is committed to providing full after-sales support, ensuring any issues are promptly resolved, including product replacement if necessary. This commitment gives you peace of mind, knowing that your investment is protected.
• Customer Testimonial: John, another CEO, stated, “The product quality is good, commendable, and it is being put into use, and there is no problem at present.” This highlights the immediate and ongoing reliability of XILUO’s products.

When you choose XILUO for your pin punches, you’re not just purchasing a tool; you’re partnering with a company that embodies precision, durability, and a deep understanding of your needs. Experience the difference that over two decades of specialized expertise can make in your workshop.

6. Conclusion

You’ve now seen that a pin punch is far more than just another tool in your box; it’s a specialized instrument essential for precision tasks like driving out or inserting pins, dowels, and rivets. Understanding its unique straight shaft design, how it differs from other punches like center or drift punches, and the critical factors influencing its durability—such as high-grade materials and precise heat treatment—empowers you to work more efficiently and safely.

By selecting the correct size, employing proper striking techniques, and adhering to consistent maintenance, you ensure your pin punches remain reliable assets. And when it comes to sourcing these vital tools, XILUO stands as a testament to quality, leveraging over two decades of expertise, advanced manufacturing, and rigorous quality control to deliver pin punches that meet the highest standards of precision and longevity. Invest in the right tools, and you’ll transform your most challenging workshop tasks into seamless successes.
