Thread rolling dies are essential tools in the fastener manufacturing process, enabling the creation of precise threads on various fasteners like screws, bolts, and studs. This method stands out due to its ability to form threads through cold-forming, preserving material strength and improving overall thread durability. In this article, we’ll delve into the world of thread rolling dies—explaining their types, how they work, their advantages over traditional methods, and tips for choosing the right one.
What Are Thread Rolling Dies?
Thread rolling dies are specialized tools used in the cold-forming process to create threads on fasteners. Unlike traditional thread-cutting methods, thread rolling reshapes the material instead of removing it, which enhances the grain structure and results in stronger, more durable threads. This method is widely preferred for high-volume production runs due to its precision, consistency, and efficiency.
Types of Thread Rolling Dies
1. Flat Dies
Flat dies are commonly used in machines that apply reciprocal motion. In this design, two flat plates come together to form the thread on a cylindrical blank. These dies are cost-effective and perfect for producing standard threads in large volumes.
2. Cylindrical Dies

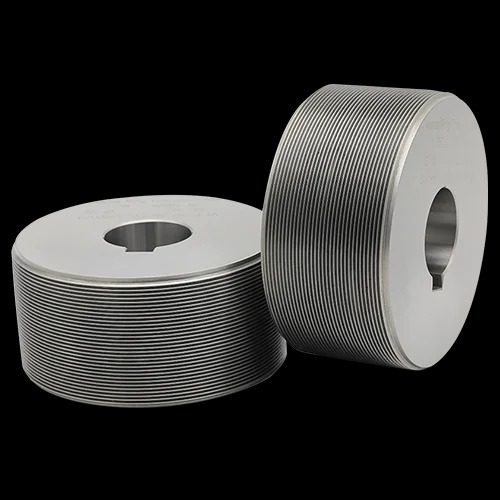

Cylindrical dies use a rotating mechanism, where one die remains stationary while the other rotates. This setup is ideal for high-volume manufacturing where consistent thread formation is crucial.
3. Planetary Dies

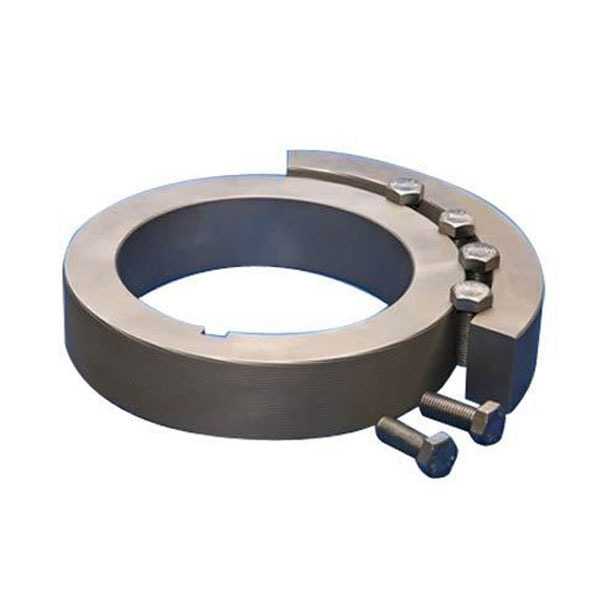

Planetary dies feature multiple rolling elements that surround the workpiece. These dies excel at producing long threads or threading extended rod lengths. While they can be more complex to set up, they provide quick cycle times and high production rates once configured.
Why Choose Thread Rolling Dies Over Traditional Methods?
1. Enhanced Strength
Thread rolling is a cold-forming process that refines the metal’s grain structure, boosting tensile strength and the overall durability of the fastener. The result? Stronger, more resilient threads.
2. Improved Precision
Thread rolling dies ensure uniformity and precision across large production runs, even under high-tolerance requirements.
3. Minimized Waste
Unlike thread cutting, which removes material, thread rolling simply reshapes it. This reduces scrap and optimizes material usage, ultimately saving costs.
How to Choose the Right Thread Rolling Dies
Material Composition
The material of the die determines its wear resistance and lifespan. High-speed steel (HSS) and tungsten carbide are common materials. The right choice depends on your production volume, the hardness of the workpieces, and the desired finish.
Hardness and Heat Treatment
For durability, thread rolling dies need to maintain proper hardness to withstand high-pressure contact. Heat treatment, particularly vacuum heat treatment, increases wear resistance and prevents deformation.
Geometry and Tolerances
Thread profile geometry (such as thread angle, lead, and pitch) and tolerance levels are critical for accurate thread formation, especially in industries like aerospace and automotive.
Coatings
Special coatings like titanium nitride (TiN) or titanium aluminum nitride (TiAlN) can extend the lifespan of thread rolling dies. These coatings reduce friction and dissipate heat during the high-speed operation of rolling.
Machine Compatibility
Ensure the selected thread rolling dies are compatible with your machine’s specifications, including chuck size, horsepower, and speed settings, to guarantee optimal performance.
How Does the Thread Rolling Process Work?
Step 1: Blank Preparation
The fastener blank is prepared by cutting it to the desired length and ensuring it has a smooth surface for consistent threading.
Step 2: Die Setup
Matching dies with reverse profiles of the thread to be formed are aligned in the machine. Depending on the type, one die may be stationary, while the other moves or rotates.
Step 3: Cold Forming
With the machine’s applied pressure, the die’s ridges press into the metal, forcing it to flow into the desired thread shape. This process improves dimensional accuracy and material strength.
Step 4: Cooling and Lubrication
Lubricants are applied to reduce friction and dissipate heat, which ensures that the process remains smooth and extends the die’s life.
Step 5: Inspection and Quality Control
After the thread is formed, the finished parts are inspected for size, shape, and surface finish using go/no-go gauges or more advanced measurement systems.
Thread Rolling Die Maintenance: How to Extend Their Life
1. Regular Cleaning
Clean the die after each use to remove metal shavings and debris. This prevents build-up that could degrade the die’s precision.
2. Lubrication
Ensure proper lubrication throughout the process to reduce friction between the die and workpiece, thus prolonging the tool’s life.
3. Proper Storage
Store dies in a clean, dry environment to prevent rust and corrosion. Protective covers are recommended for long-term storage.
4. Inspection and Resharpening
Inspect the die’s thread profiles periodically for wear. Resharpening or regrinding may be necessary to maintain precision.
5. Record Keeping
Track the number of cycles and performance data to predict when maintenance or replacements are needed.
Where Are Thread Rolling Dies Used?
Thread rolling dies are indispensable in a wide range of industries:
Automotive
From engine components to transmission systems, thread rolling is widely used in the automotive industry for high-quality fasteners.
Aerospace
Aerospace applications require tight tolerances and high strength, making thread rolling ideal for producing durable fasteners used in aircraft parts.
Construction & Infrastructure
High-strength structural fasteners used in buildings and infrastructure projects are often made using thread rolling dies.
Electronics & Telecommunications
Miniature screws and connectors used in electronics require flawless threading, which thread rolling dies can consistently produce.
Future Trends in Thread Rolling Dies
1. Advanced Coatings
New coatings are being developed that reduce friction and even self-lubricate under extreme conditions, extending die life and improving performance.
2. Automation & Smart Systems
Modern thread rolling machines now integrate sensors to monitor wear patterns and predict maintenance needs, minimizing downtime and improving efficiency.
3. Lightweight Alloys
As industries shift toward lighter materials, thread rolling dies are being adapted to form new alloys without compromising thread strength.
4. Sustainable Manufacturing
Thread rolling, by nature, reduces material waste, and further innovations aim to minimize energy consumption and extend tool life, contributing to greener manufacturing processes.
Conclusion: Why Invest in Thread Rolling Dies?
Thread rolling dies are invaluable tools for manufacturers striving to produce high-quality, durable fasteners efficiently. Their ability to create strong, uniform threads while minimizing material waste makes them essential in industries such as automotive, aerospace, construction, and electronics. With proper maintenance and the latest advancements in coatings and automation, thread rolling technology is poised to remain a vital part of fastener manufacturing for years to come.
For companies looking to maximize efficiency and product quality, investing in the right thread rolling dies, coupled with ongoing maintenance and attention to emerging trends, is key to maintaining a competitive edge.
