Are you seeking to produce high-quality, cost-effective nuts with superior strength and precision? Nut forming dies are specialized tools central to the cold forging process, transforming raw wire into finished nuts through a series of intricate deformation stages, ensuring exceptional material integrity and high-volume production efficiency. This advanced tooling is indispensable for modern fastener manufacturing, delivering robust components with minimal waste.

In the vast landscape of fastener production, nuts stand as fundamental components, crucial for securing countless assemblies across every industry imaginable. While their appearance might seem simple, the manufacturing process behind a high-quality nut is a testament to precision engineering. At the heart of this process lies the nut forming die, a sophisticated tool that leverages the power of cold forging to create nuts with unparalleled strength and accuracy. This article will explore the intricate world of nut forming dies, revealing how they are revolutionizing the production of these essential fasteners.

Table of Contents

1. What Exactly Are Nut Forming Dies?
2. How Do Nut Forming Dies Function in Cold Forging?
3. What Are the Key Advantages of Using Nut Forming Dies?
4. What Materials Are Best Suited for Nut Forming Dies?
5. How Does Customization Optimize Nut Forming Die Performance?
6. What Quality Control Measures Ensure Superior Nut Forming Dies?

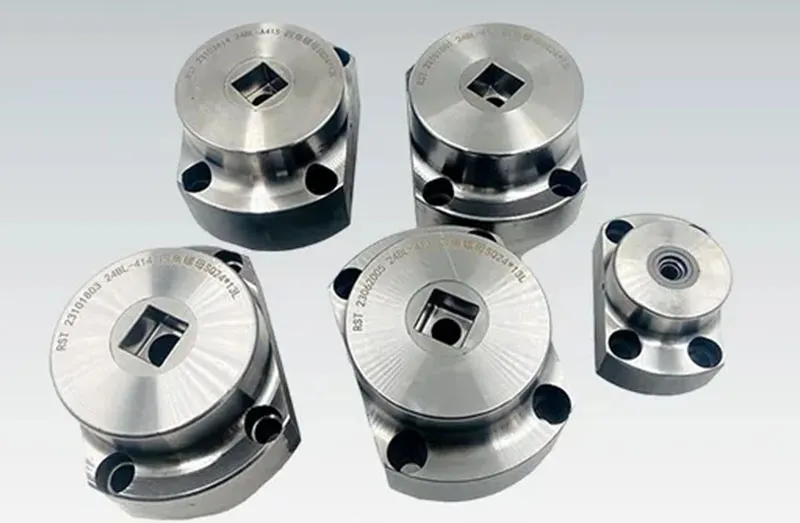

1. What Exactly Are Nut Forming Dies?

Nut forming dies are specialized, multi-stage tooling components used in cold forging machines to progressively shape a metal blank (typically wire) into a finished nut, involving processes like upsetting, piercing, and trimming, all without material removal. These dies are engineered for extreme precision and durability, enabling the high-speed, high-volume production of nuts with superior mechanical properties.

At their core, nut forming dies are the molds that give nuts their shape. Unlike traditional machining, which cuts away material, cold forging with these dies deforms the metal, rearranging its internal grain structure to enhance strength and fatigue resistance. This process is highly efficient, minimizing waste and maximizing material utilization. The design and material of these precision nut tooling components are critical to the quality and cost-effectiveness of the final product.

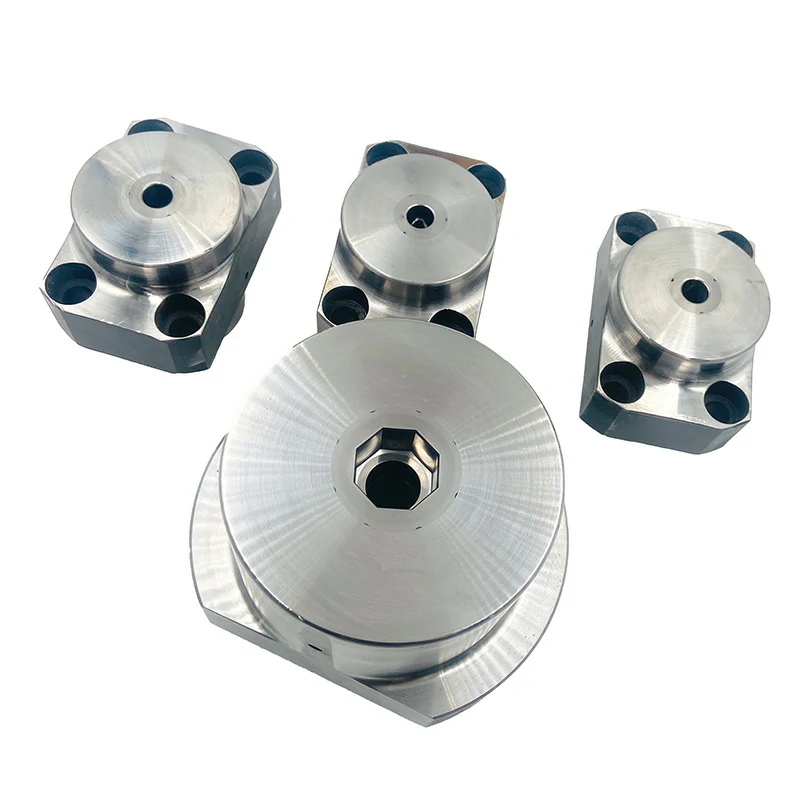

1.1. Defining Nut Forming Dies

Nut forming dies are typically a series of individual die inserts, punches, and knock-out pins, each designed to perform a specific deformation step within a multi-station cold heading or cold forging machine. These components work in concert to gradually transform a cylindrical wire blank into a complex nut shape, complete with a formed head, a pierced hole, and sometimes even a chamfer or washer face. The process is a testament to controlled plastic deformation, where metal is forced to flow into the desired geometry under immense pressure.

For example, a common hex nut might require 4 to 6 forming stations. The first station might upset the wire to create a larger diameter head. Subsequent stations would then progressively shape the hex profile, pierce the central hole, and finally trim the excess material. Each die in the sequence is meticulously designed to handle the specific stresses and material flow of its stage, ensuring a seamless transition from one step to the next. This sequential forming is what makes nut cold forging dies so effective.

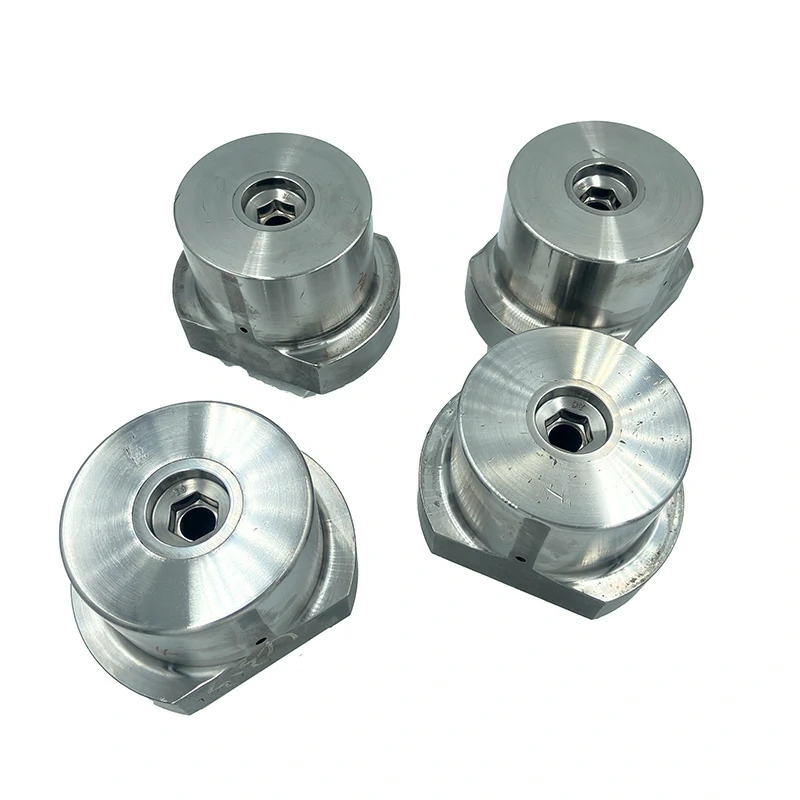

1.2. Types of Nuts Produced by Forming Dies

Nut forming dies are incredibly versatile, capable of producing a wide array of nut types, each with specific applications and design requirements. The ability to cold form these diverse shapes efficiently is a major advantage.

• Hex Nuts: The most common type, ranging from standard hex nuts to heavy hex nuts, often produced in high volumes for general fastening applications.
• Flange Nuts: Nuts with an integrated washer-like flange, which distributes the load over a larger area, reducing the likelihood of damage to the fastened part and preventing loosening due to vibration.

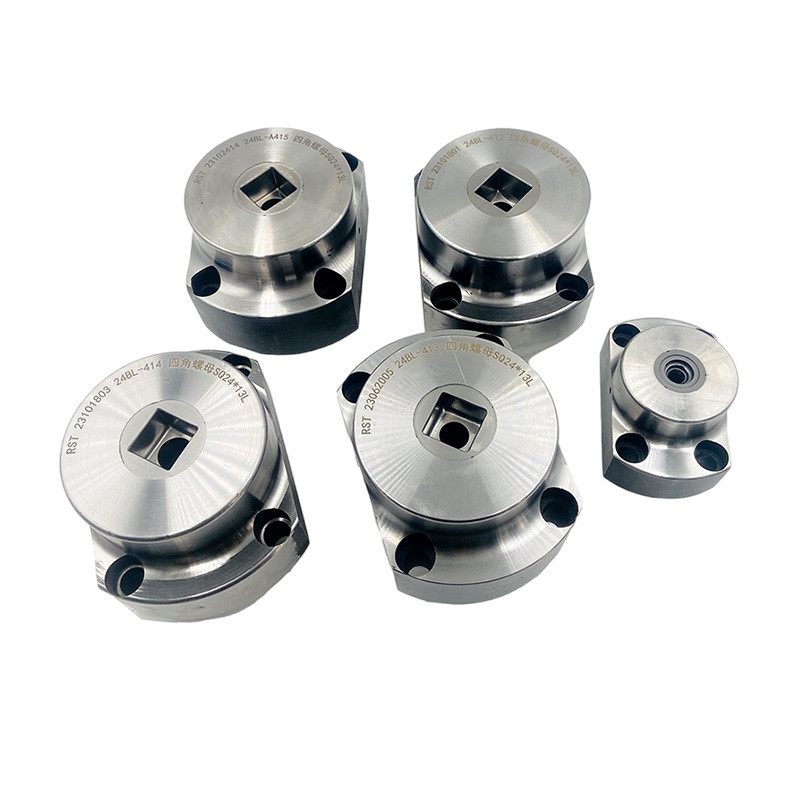

• Square Nuts: Used in specific applications where a larger bearing surface or wrenching area is required, often in conjunction with square-headed bolts.
• Cap Nuts (Acorn Nuts): Decorative nuts with a domed top that covers the end of the bolt, providing a finished appearance and protecting the threads.
• Lock Nuts: Various types designed to resist loosening under vibration, such as prevailing torque nuts (e.g., nylon insert lock nuts) or all-metal lock nuts, often requiring specialized die features for their unique locking mechanisms.

The precision and consistency offered by formed nuts through these dies ensure reliable performance across diverse industries, from automotive to construction. For a comprehensive range of these essential tools, explore our selection of nut forming dies.

1.3. The Multi-Station Cold Forging Process

The production of nuts using forming dies is almost exclusively done through a multi-station cold forging process. This involves a series of sequential operations performed on a single machine, where the blank moves from one station to the next, undergoing progressive deformation.

Table 1: Typical Stages in Multi-Station Nut Forming

Each stage requires a precisely designed die and punch combination, working in perfect synchronization. The efficiency of this multi-station approach, facilitated by robust nut forming dies, allows for extremely high production rates, making it the preferred method for mass-producing nuts globally.

2. How Do Nut Forming Dies Function in Cold Forging?

Nut forming dies function by applying immense compressive forces to a metal blank, causing it to plastically deform and flow into the die cavity, progressively shaping it through a series of distinct stages (upsetting, piercing, trimming) without any material removal, thereby enhancing the nut’s strength and precision. This cold forging method ensures superior material integrity and high production efficiency.

The operational mechanics of nut forming dies are a sophisticated dance between force, material properties, and precision tooling. Unlike cutting, which removes material, cold forging reshapes it, leading to a stronger, more reliable end product. Understanding this intricate process is key to appreciating the value these dies bring to fastener manufacturing.

2.1. The Principle of Cold Forging

Cold forging, also known as cold heading or cold forming, is a metalworking process where metal is shaped at or near room temperature. The fundamental principle involves applying compressive stresses that exceed the material’s yield strength, causing it to deform plastically and take the shape of the die cavity. This process is distinct from hot forging, which occurs above the material’s recrystallization temperature.

The primary advantages of cold forging include:

• Work Hardening: The deformation process increases the material’s hardness and strength.
• Improved Grain Structure: The metal’s grain flow is aligned with the part’s contours, enhancing its fatigue resistance and toughness.
• Excellent Surface Finish: Cold working often results in a smooth, bright surface, reducing the need for secondary finishing operations.
• Dimensional Accuracy: Parts produced by cold forging typically have very tight tolerances.

Nut forming dies are specifically designed to harness these benefits, ensuring that each nut produced is not only dimensionally accurate but also possesses superior mechanical properties.

2.2. Progressive Deformation Stages

The journey of a wire blank through a nut forming machine is a series of carefully orchestrated progressive deformation stages. Each station in the machine houses a unique set of dies and punches that perform a specific operation, gradually transforming the blank.

• Upsetting: This is often the first major forming step, where the wire blank is compressed axially to increase its diameter and form the initial “head” of the nut. The die cavity controls the outer diameter, while the punch applies the force.
• Pre-forming/Shaping: Subsequent stations begin to define the external shape of the nut, such as the hexagonal profile. This might involve multiple stages of partial forming to ensure even material flow and prevent cracking.
• Piercing: A critical step where a punch pushes through the center of the nut blank to create the internal hole. The material removed during piercing (the slug) is typically ejected.
• Sizing and Trimming: The final stations refine the nut’s dimensions, ensuring the hex flats are precise and any excess material (flash) around the periphery is cleanly trimmed off.

This systematic progression, guided by the precise geometry of each nut forming die, ensures that the material is worked optimally, leading to a high-quality finished product.

2.3. Material Flow and Stress Management

Understanding material flow and managing stress are paramount in the design and function of nut forming dies. During cold forging, metal is forced to flow into complex shapes, which generates significant internal stresses within the dies.

• Controlled Flow: Die designers meticulously plan the sequence of operations to ensure the metal flows smoothly and evenly into the die cavities, preventing defects like folds, cracks, or incomplete fills. This often involves designing specific radii and angles within the dies.
• Stress Distribution: The dies themselves must be designed to withstand immense compressive and tensile stresses. This involves selecting appropriate die materials (as discussed in Section 4), applying proper heat treatments, and sometimes incorporating shrink rings or other reinforcement methods to support the die inserts.
• Lubrication: Effective lubrication is crucial to reduce friction between the workpiece and the dies, facilitate material flow, and extend die life. The lubricant also helps to dissipate heat generated during the deformation.

The intricate interplay of these factors ensures that the cold forging process is efficient, the dies last longer, and the nuts produced are of the highest quality.

3. What Are the Key Advantages of Using Nut Forming Dies?

Utilizing nut forming dies in cold forging offers significant advantages over traditional machining, including superior material strength due to optimized grain flow, exceptional dimensional accuracy and surface finish, and remarkable cost-effectiveness for high-volume production through minimal material waste and extended tool life. These benefits collectively lead to higher quality nuts and more efficient manufacturing operations.

The shift from machining to cold forging with nut forming dies represents a leap forward in fastener manufacturing. The benefits are not just incremental; they fundamentally change the performance characteristics of the nuts and the economics of their production.

3.1. Enhanced Material Strength and Integrity

One of the most compelling reasons to use nut forming dies is the significant improvement in the mechanical properties of the finished nut.

• Optimized Grain Flow: Unlike machining, which cuts through the material’s grain structure, cold forging forces the metal’s grains to flow along the contours of the nut. This continuous, unbroken grain flow enhances the nut’s resistance to fatigue, impact, and shear stresses. For example, a cold-formed nut will typically have higher torque-tension performance and be less prone to stripping than a machined nut of the same material.
• Work Hardening: The plastic deformation process itself induces work hardening, increasing the material’s yield and tensile strength. This means that a cold-formed nut can often achieve the same strength as a larger or higher-grade machined nut, potentially leading to material savings.
• Reduced Defects: The compressive nature of cold forging tends to close up minor internal defects or porosity in the raw material, leading to a denser, more uniform structure.

These factors combine to produce stronger, more reliable nuts that can withstand demanding applications.

3.2. Superior Dimensional Accuracy and Surface Finish

The precision inherent in cold forging with nut forming dies results in nuts with excellent dimensional consistency and a high-quality surface finish.

• Tight Tolerances: The rigid design of the dies and the controlled material flow allow for the production of nuts with very tight tolerances on critical dimensions such as the across-flats measurement, height, and hole diameter. This ensures consistent fit and assembly.
• Smooth Surface Finish: The cold working process burnishes the surface of the nut, resulting in a smooth, often bright finish. This reduces friction during assembly, improves corrosion resistance, and enhances the aesthetic appeal of the fastener.
• Elimination of Burrs: Unlike machining, which can leave burrs that require secondary deburring operations, cold forming typically produces burr-free parts, streamlining the production process.

The superior finish and accuracy of precision formed nuts are vital for applications where reliable fastening and aesthetic quality are paramount.

3.3. Significant Cost-Effectiveness for Mass Production

For manufacturers producing nuts in high volumes, the economic benefits of using nut forming dies are substantial.

• Minimal Material Waste: Cold forging is a near net-shape process, meaning that almost all the raw material (wire) is converted into the finished nut. This dramatically reduces scrap compared to machining, where a significant portion of the material is turned into chips. For example, a machined nut might generate 30-50% scrap, while a cold-formed nut generates less than 5%.
• High Production Rates: Multi-station cold forging machines are incredibly fast, capable of producing hundreds of nuts per minute. This high output rate significantly lowers the per-unit manufacturing cost by reducing labor and overhead.
• Extended Tool Life: While nut forming dies are subjected to immense forces, their design and material (especially high-quality steels and carbides) are optimized for durability. Compared to cutting tools, which wear quickly due to chip formation, cold forming dies often have a much longer lifespan, reducing tooling replacement costs and machine downtime.

These combined factors make efficient nut manufacturing through cold forging a highly economical choice for large-scale production.

3.4. Environmental Benefits

Beyond the economic advantages, the reduced material waste and energy efficiency of cold forging with nut forming dies also offer significant environmental benefits. Less raw material consumption means a smaller carbon footprint associated with material extraction and processing. Reduced scrap also means less waste sent to landfills or requiring energy-intensive recycling. This aligns with modern sustainability goals, making it a more environmentally responsible manufacturing choice.

4. What Materials Are Best Suited for Nut Forming Dies?

The optimal materials for nut forming dies are high-performance tool steels like DC53, D55, and especially tungsten carbide, chosen for their exceptional hardness, wear resistance, and toughness to withstand the immense compressive forces, impact loads, and abrasive wear inherent in the multi-stage cold forging process. The right material selection is paramount for maximizing die life and ensuring consistent nut quality.

The extreme conditions within a cold forging machine demand that nut forming dies are made from materials that can endure immense pressure and repetitive impact without deforming or failing prematurely. The choice of material directly impacts the die’s lifespan, the quality of the nuts produced, and ultimately, the overall cost-effectiveness of the manufacturing operation.

4.1. Critical Properties for Die Materials

For a material to be suitable for nut forming dies, it must possess a specific combination of properties:

• High Hardness: To resist plastic deformation and maintain the precise geometry of the die cavity under extreme compressive loads.
• Excellent Wear Resistance: To withstand the abrasive action of the flowing metal and maintain dimensional accuracy over long production runs.
• High Toughness: To absorb the impact forces generated during each forging stroke without cracking or chipping. This is particularly important for dies used in upsetting and piercing operations.
• High Compressive Strength: The ability to withstand crushing forces without yielding.
• Good Machinability/Grindability: While hard, the material must still be capable of being precisely machined and ground to the intricate shapes required for nut forming.

Balancing these properties is key, as enhancing one often comes at the expense of another (e.g., very high hardness can sometimes mean lower toughness).

4.2. High-Performance Tool Steels

For many nut forming applications, especially those involving standard materials and moderate production volumes, high-performance tool steels are the preferred choice.

• DC53 Steel: A popular cold work tool steel known for its excellent balance of toughness and wear resistance. It’s a modified D2 steel, offering improved machinability and heat treatment response, making it less prone to cracking during hardening. Dies made from DC53 are robust and reliable for various nut forming stages, particularly for upsetting and pre-forming.
• D55 Steel: Often refers to a premium grade of cold work tool steel, typically offering enhanced wear resistance and compressive strength compared to standard D2 or even DC53. It’s chosen for more demanding applications where extended die life is critical, or when forming harder grades of steel wire.
• Other Proprietary Steels: Leading manufacturers like XILUO often utilize a range of high-quality imported steels, carefully selected based on the specific nut type, workpiece material, and desired die performance. These might include specialized high-speed steels or powder metallurgy steels that offer superior wear resistance and toughness.

These steels undergo precise heat treatment processes, including hardening, tempering, and stress relieving, to achieve their optimal properties, transforming them into resilient nut forming die materials.

4.3. The Role of Tungsten Carbide

For the most extreme conditions in nut forming, particularly for piercing operations or when forming very hard materials, tungsten carbide is indispensable.

• Tungsten Carbide (WC): This exceptionally hard and wear-resistant composite material is ideal for components that experience severe abrasion and high compressive loads. While more expensive and brittle than steel, its superior hardness allows it to maintain its shape and cutting edge (for piercing punches) for significantly longer periods.
• Applications in Nut Forming: Carbide is commonly used for piercing punches and dies, where the material is subjected to intense localized pressure and friction as the hole is formed. It’s also used for sizing and trimming dies where high wear resistance is critical for maintaining precise dimensions.
• Benefits: Carbide dies can offer a lifespan many times that of steel dies, drastically reducing downtime for tool changes and increasing overall productivity in ultra-high-volume production. XILUO’s expertise in carbide heading dies extends to their nut forming tooling, leveraging the same material advantages.

The choice between steel and carbide for nut forming tooling involves a careful analysis of initial cost versus long-term performance and total cost of ownership.

5. How Does Customization Optimize Nut Forming Die Performance?

Customization significantly optimizes nut forming die performance by precisely tailoring the die’s design, material, and surface treatment to the specific nut geometry, material properties, and cold forging machine parameters, ensuring superior nut quality, extended die life, and seamless integration into the production line. This bespoke approach maximizes efficiency and minimizes common manufacturing challenges.

In the complex world of nut manufacturing, a generic approach to tooling often leads to compromises in quality and efficiency. The ability to customize nut forming dies is paramount, allowing manufacturers to achieve optimal results for their unique products and production setups. This goes beyond standard dimensions; it involves a deep engineering understanding of material flow and stress.

5.1. Tailoring to Specific Nut Geometries

Every nut type, from a standard hex nut to a specialized flange nut, presents unique forming challenges. Customization ensures the dies are perfectly engineered for these specific geometries.

• Complex Profiles: For nuts with intricate features like serrated flanges, specific chamfers, or unique head designs, custom dies are essential to ensure accurate material flow and complete fill of the die cavity.
• Hole Piercing Optimization: The design of the piercing punch and die is critical for creating a clean, concentric hole without tearing or excessive burring. Customization allows for optimization based on nut size, material, and desired hole quality.
• Material Allowance: Custom dies account for the specific material volume and how it will flow during each upsetting and forming stage, preventing issues like underfill or excessive flash.

This level of precision in custom nut tooling is vital for producing nuts that meet stringent industry standards and perform reliably in their intended applications.

5.2. Optimizing for Machine and Material Compatibility

A well-designed die must also function flawlessly within the specific cold forging machine and with the chosen raw material. Customization addresses these critical interfaces.

• Machine-Specific Dimensions: Nut forming dies are designed to fit the exact dimensions and mounting configurations of the client’s cold forging machine, ensuring proper alignment and secure clamping.
• Material Properties: The specific grade and properties of the wire being formed (e.g., carbon steel, stainless steel, alloy steel) directly influence die design. Customization allows for adjustments in die clearances, angles, and material selection to optimize for the flow characteristics and hardness of the workpiece material.
• Process Optimization: Experienced die manufacturers can design dies that account for the machine’s tonnage, speed, and number of stations, optimizing the progressive forming sequence for maximum efficiency and die life.

This holistic approach to design ensures that the bespoke nut forming dies are not just parts, but integrated solutions for the entire production process.

5.3. Advanced Surface Treatments for Enhanced Performance

Beyond the base material, the surface treatment applied to nut forming dies significantly impacts their performance and longevity. Customization allows for the selection of the most appropriate treatment.

• Polishing: A high-quality polish on the die’s working surfaces reduces friction, promotes smooth material flow, and enhances the surface finish of the formed nut.
• Nitriding: This thermochemical process enriches the surface of steel dies with nitrogen, creating a very hard, wear-resistant layer that improves fatigue strength and galling resistance.
• PVD/CVD Coatings (e.g., TiN, TiCN, AlTiN): Physical Vapor Deposition (PVD) or Chemical Vapor Deposition (CVD) coatings apply thin, extremely hard ceramic layers to the die surface. These coatings dramatically increase surface hardness, reduce friction, and provide superior wear resistance, especially when forming abrasive materials or aiming for extended production runs. XILUO’s capability to provide customized surface treatments ensures optimal performance for even the most challenging nut forming applications.

These treatments are integral to maximizing the durability and efficiency of high-performance nut forming dies.

5.4. The Value of OEM & ODM Services

Original Equipment Manufacturer (OEM) and Original Design Manufacturer (ODM) services are fundamental to providing truly customized nut forming die solutions.

• OEM Services: XILUO can manufacture nut forming dies precisely to a client’s existing designs and specifications, ensuring perfect compatibility with their established production lines and maintaining consistency across their tooling inventory.
• ODM Services: This involves a collaborative process where XILUO’s expert R&D team works with the client to design and develop entirely new die solutions. This is invaluable for new nut designs, optimizing existing processes for better efficiency or quality, or addressing specific manufacturing challenges. XILUO’s “one-stop” factory approach, backed by over 24 years of experience and a strong R&D team, makes them a leader in providing tailored cold forming solutions. Learn more about our comprehensive OEM and ODM services.

Through comprehensive OEM and ODM capabilities, companies like XILUO empower their clients to innovate, improve efficiency, and produce nuts of the highest quality, truly offering bespoke cold forging tooling.

6. What Quality Control Measures Ensure Superior Nut Forming Dies?

Ensuring superior nut forming dies requires a stringent, multi-stage quality control process encompassing rigorous incoming material inspection, precise in-process monitoring with advanced machining, and comprehensive final product verification using sophisticated testing equipment like profilometers, hardness testers, and optical comparators. This meticulous approach guarantees the dies meet exact specifications for durability, precision, and optimal performance in cold forging.

The manufacturing of high-precision nut forming dies is a demanding process where even minute deviations can impact the quality of millions of nuts. Therefore, an unwavering commitment to quality control (QC) at every stage is not just beneficial, but absolutely essential. A robust QC system ensures that each die produced will perform reliably, extend tool life, and contribute to consistent, high-quality nut production.

6.1. Rigorous Incoming Material Inspection

The quality of the finished die is fundamentally dependent on the quality of its raw materials. Before any manufacturing begins, all incoming steel and carbide blanks undergo thorough inspection.

• Chemical Composition Analysis: Using advanced spectrometers to verify that the material’s chemical composition precisely matches the specified alloy, ensuring correct properties after heat treatment.
• Hardness and Microstructure Testing: Checking the initial hardness and examining the microstructure to detect any internal defects, inclusions, or inconsistencies that could compromise the die’s integrity or performance.
• Dimensional Verification: Confirming that the raw material dimensions are accurate and within tolerance, preventing issues in subsequent machining stages.

This initial, meticulous screening prevents defective materials from entering the production flow, saving significant time and resources and laying the groundwork for reliable nut forming tooling.

6.2. In-Process Monitoring and Precision Machining

Quality control is an active, continuous process integrated into every step of die manufacturing, not just a final check. Modern die production relies heavily on advanced machinery and constant oversight.

• State-of-the-Art CNC Machining: Utilizing highly precise CNC grinding and EDM (Electrical Discharge Machining) equipment ensures that the intricate die cavities and punch profiles are machined to extremely tight tolerances. These machines are regularly calibrated and maintained to prevent drift.
• Temperature and Environment Control: Maintaining stable temperatures and controlled environments during critical machining and heat treatment processes is crucial to prevent material distortion and ensure consistent metallurgical properties.
• Intermediate Dimensional Checks: Skilled operators perform frequent checks using precision instruments (e.g., micrometers, bore gauges, optical comparators) after each significant machining operation. This allows for early detection and correction of any deviations, preventing costly rework later.
• Surface Finish Verification: Monitoring the surface roughness and finish at various stages to ensure the die’s working surfaces are smooth enough to promote optimal material flow and prevent galling during forging.

This continuous vigilance throughout the manufacturing process ensures that the cold forging dies are being crafted to exact specifications, minimizing errors and maximizing efficiency.

6.3. Advanced Testing Equipment for Final Verification

Upon completion of all manufacturing steps, each nut forming die undergoes a comprehensive battery of tests using specialized, high-precision equipment to verify its dimensional accuracy, surface integrity, and material properties.

• Profilometers: These instruments precisely measure the contours and angles of the die’s working surfaces, ensuring that the complex geometry for forming the nut’s head, body, and hole is perfectly accurate.
• Optical Comparators / Video Measuring Systems: These devices project a magnified image of the die onto a screen or capture it digitally, allowing for detailed visual inspection and precise measurement against the engineering drawings. They are invaluable for detecting minute imperfections or deviations.
• Hardness Testers: Post-heat treatment, the dies are rigorously tested for their final hardness (e.g., Rockwell, Vickers) to confirm that the material has achieved the optimal level for wear resistance and toughness required for demanding cold forging operations.
• Roughness Testers: Measuring the surface roughness of the die’s critical working faces to ensure they meet the specified finish for smooth material flow and high-quality nut formation.

These sophisticated tools provide objective, quantifiable data, ensuring that every finished nut forming die meets the highest standards of quality and performance before it is approved for shipment.

6.4. The XILUO Commitment to Durability and Precision

XILUO’s commitment to quality is a cornerstone of their operations. With over 24 years of industry experience and a 10,000 square meter production base equipped with over 200 sets of advanced processing equipment, their stringent “strict quality control at all production stages and on final products” ensures that their durable nut forming dies consistently deliver exceptional results. This meticulous approach, combined with their use of high-quality imported steels (like DC53, D55) and expertise in carbide tooling, translates directly into longer die life for customers, reduced downtime, and consistently high-quality nuts, making XILUO a trusted partner in the global fastener industry. Their daily output of 2,000 molds is a testament to their efficient and quality-driven processes.

Conclusion

Nut forming dies are indispensable tools that underpin the modern production of high-quality nuts. By harnessing the power of multi-stage cold forging, these specialized dies enable manufacturers to produce nuts with superior strength, exceptional dimensional accuracy, and remarkable cost-effectiveness, far surpassing traditional machining methods.

The journey of a premium nut forming die, from the careful selection of advanced materials like high-performance tool steels and tungsten carbide, through meticulous customization for specific nut geometries and machine compatibility, to the rigorous multi-stage quality control processes, highlights the profound expertise required in their creation. Companies like XILUO, with their extensive industry experience, robust R&D capabilities, and unwavering commitment to quality, stand as leaders in this field. They not only provide durable and precise nut forming dies but also offer comprehensive OEM and ODM services, ensuring tailored solutions and full after-sales support. Investing in the right nut forming dies is a strategic decision that directly impacts the quality, efficiency, and long-term success of your nut manufacturing operations.
