Threads are everywhere. They are foundational to modern engineering. From aircraft engines to everyday furniture, strong and reliable threads connect components. These threads are often made through a cold forming process using thread rolling dies. These dies are crucial tools. They shape metal by displacing it, not by cutting. This article focuses on a core question: “What are thread rolling dies made of, and why is material selection so critical for their performance?” We will explore the key materials, their properties, and the treatments that define a high-quality thread rolling die.

The Demands on Thread Rolling Die Materials

Thread rolling dies operate under extreme conditions. They face immense pressure and friction. Dies must withstand these challenges.

Key Stressors on Dies

• High Compressive Forces: Dies exert enormous pressure to plastically deform the workpiece material.
• Abrasive Wear: Constant friction from the flowing metal causes wear on the die’s surface.
• Thermal Stresses: Localized heat can build up during high-speed operations. This creates thermal stresses within the die material.
• Impact Loads: Reciprocating (flat) dies, especially, endure repeated impacts.

Consequences of Material Failure

Poor material selection or processing leads to die failure. Common issues include rapid wear, chipping, or cracking. These failures result in poor thread quality. They also cause increased machine downtime and higher production costs.

Primary Materials for Thread Rolling Dies: A Deeper Look

Selecting the right material is paramount for die longevity and performance. Different types of tool steels offer varied characteristics.

High Carbon High Chromium (HCHCr) Tool Steels

These steels are very popular for thread rolling dies. Examples include D2, Cr12MoV, DC53, and D55.

• Properties: They offer high wear resistance and excellent hardenability. They also maintain good dimensional stability after heat treatment.
• Applications: Manufacturers widely use HCHCr steels for both flat and cylindrical dies. They are suitable for general-purpose fastener production.
• Variations: Specific grades within this family show subtle differences. These variations balance toughness and wear resistance for different applications.

High-Speed Tool Steels (HSS)

HSS provides a balanced set of properties. Examples include M2, SKH59, H5, and H9.

• Properties: HSS offers a good balance of hardness and toughness. Crucially, they possess excellent hot hardness. This means they resist softening at elevated temperatures.
• Applications: HSS is ideal for high-speed rolling operations. It’s also chosen when more toughness is needed for certain workpiece materials or complex thread geometries.

Other Alloys & Advanced Materials

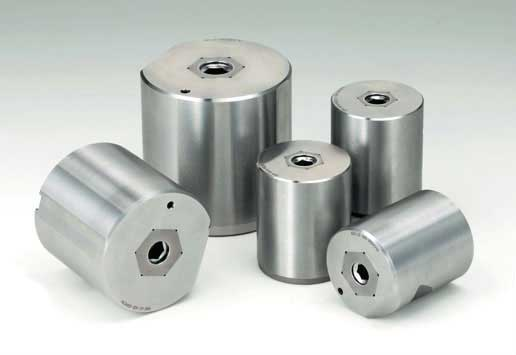

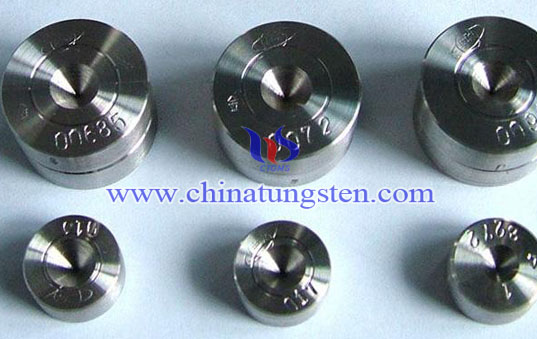

While less common for the main body of dies, medium-alloy cold-work steels also see use. Tungsten Carbide is known for extreme hardness. While not typically used for the entire die, it’s a key material in related precision tooling components where wear resistance is paramount.

Crucial Properties of Thread Rolling Die Materials

Effective thread rolling dies must possess several critical material properties:

• Hardness (HRC): This is the ability to resist indentation and abrasive wear. Typical hardness ranges for thread rolling dies are between 59-62 HRC.
• Wear Resistance: This property describes the material’s ability to resist removal due to continuous friction and abrasion from the workpiece.
• Toughness/Impact Resistance: This is the capacity to absorb energy and deform plastically without fracturing. It is crucial to prevent chipping, especially under dynamic loads.
• Dimensional Stability: The material must maintain its original shape and size precisely. This is vital during heat treatment and under the immense operational stress of rolling.
• Compressive Strength: This refers to the ability to withstand immense pressure without permanent deformation.
• Hot Hardness: The material must retain its hardness at elevated temperatures. This is important for high-speed operations where friction generates heat.

Enhancing Die Performance: Heat Treatment and Surface Technologies

Raw material alone is not enough. Post-processing steps critically enhance die performance.

Heat Treatment (Hardening & Tempering)

Heat treatment is arguably the most critical step in die manufacturing.

• Importance: It transforms the steel’s microstructure. This achieves the desired balance of hardness, toughness, and wear resistance.
• Process: Dies undergo controlled heating and rapid quenching (hardening). This is followed by tempering. Tempering involves reheating to a lower temperature. This relieves internal stresses and optimizes the microstructure for toughness.

Surface Treatments & Coatings

After heat treatment, specialized surface treatments and coatings further improve die life.

• Purpose: These thin-film layers further reduce friction. They enhance wear resistance and prevent galling (material transfer). Ultimately, they extend die life significantly.
• Common Coatings:
  • TiN (Titanium Nitride): Good general-purpose coating, improves hardness and wear.
  • TiCN (Titanium Carbo-Nitride): Offers superior hardness and abrasion resistance compared to TiN.
  • AlTiN (Aluminum Titanium Nitride): Known for excellent hot hardness and oxidation resistance, ideal for high-heat applications.
  • CrN (Chromium Nitride): Provides good wear resistance and low friction, suitable for sticky materials.

Selecting the Right Die Material: Key Considerations

Choosing the optimal die material is a balancing act. Several factors must be carefully evaluated:

• Workpiece Material Properties:
  • Hardness/Tensile Strength: Harder workpiece materials demand tougher, more wear-resistant dies.
  • Ductility/Formability: The ease with which the workpiece material flows affects die design and material selection.
  • Alloying Elements: Specific elements in the workpiece (e.g., sulfur or lead) can influence die wear rates.
• Thread Profile & Geometry: Complex or deep threads may require die materials with specific toughness to prevent chipping.
• Production Volume & Speed: High-volume or high-speed operations demand extremely durable dies, often requiring advanced coatings.
• Machine Type & Rolling Method: The type of rolling machine (e.g., flat vs. cylindrical dies) and method (in-feed vs. thru-feed) influences stress distribution. This can, in turn, affect material choice.
• Cost-Performance Balance: The final decision often balances the initial material cost with the expected die life. This also considers overall production efficiency and cost per part.

Conclusion: The Foundation of Precision Threading

Material science is the foundation of thread rolling die performance. The strategic selection of tool steels, combined with precise heat treatment and advanced surface coatings, defines a die’s ability to produce high-strength threads. This intricate interplay of material properties and processing enables the precision and durability crucial for modern manufacturing. As industries evolve, ongoing research into advanced materials promises even greater capabilities for thread rolling dies.
