Threads form a critical part of modern engineering. They provide connection, movement, and structural integrity. Among threading methods, thread rolling stands out for its superior quality. Central to this process are thread rolling dies. These specialized tools cold-form external threads on cylindrical workpieces. They displace material rather than cutting it. This makes thread rolling a chipless, cold-working process. These dies are essential. They produce high-strength, fatigue-resistant, and precise threads for countless applications worldwide.

How Thread Rolling Dies Work: The Cold Forming Principle

Thread rolling dies operate on a principle of material displacement. They do not remove metal. This cold forming method compacts the material.

Preparing the Workpiece

The process starts with a workpiece, often called a blank. Manufacturers typically machine or grind this blank to a specific pitch diameter. This diameter is slightly smaller than the finished thread’s major diameter. This precise sizing ensures proper material flow during rolling.

The Rolling Action: Shaping by Pressure

The dies apply immense radial pressure to the blank. As the blank rolls between the dies, the metal flows plastically. It moves into the die’s ground thread profile. This action forms the thread crests and roots. This cold working process compacts the grain structure. Consequently, it increases the material’s density and strength.

Operational Methods

Two main methods exist for thread rolling:

• In-feed (Plunge Rolling): Dies roll the thread in a fixed position. This method is suitable for shorter thread lengths, usually less than the die width. It works well for parts with shoulders or heads.
• Thru-feed (Continuous Rolling): The workpiece passes axially between the dies. This method is ideal for long threaded rods or for producing continuous threads on a part.

Types of Thread Rolling Dies: Matching the Right Die to the Job

Thread rolling dies come in various forms. Each type suits specific machine styles and application requirements.

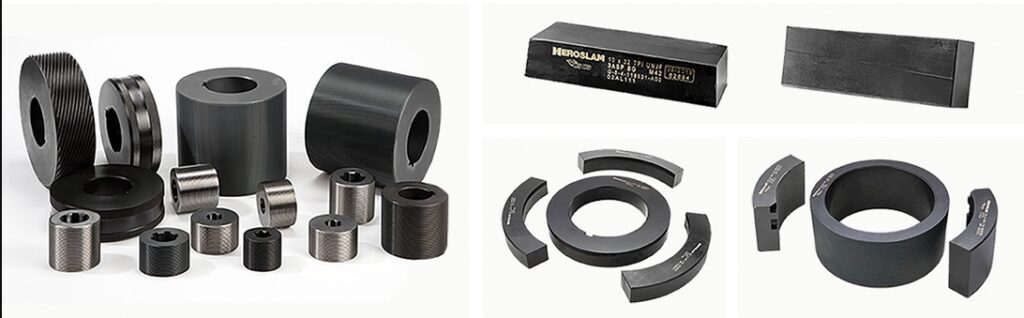

Categorization by Machine Type

• Flat Dies:
  • Description: These are reciprocating flat dies. One die remains stationary, while the other moves back and forth.
  • Application: They are widely used for high-volume production. They create shorter fasteners like machine screws, wood screws, and tapping screws.
• Cylindrical (Circular/Rotary) Dies:
  • Description: These systems use two or three rotating cylindrical dies. The workpiece rolls between them.
  • Application: These are versatile. They handle longer threads, larger diameters, and continuous rolling via the thru-feed method.
• Planetary Dies:
  • Description: This setup features multiple short, flat dies arranged circularly. They surround a central circular die or blank.
  • Application: Planetary dies achieve extremely high production rates. They are typically used for smaller parts.

Specialized Profiles

Beyond standard threads, dies are designed for specific thread forms. These include ACME or buttress threads. They also create knurling patterns.

Materials and Manufacturing of Thread Rolling Dies

The performance and lifespan of thread rolling dies depend heavily on their materials and manufacturing precision.

Primary Die Materials

• High Carbon High Chromium (HCHCr) Steel: Often referred to as D2 steel, this material offers excellent wear resistance and hardness after heat treatment.
• High-Speed Steel (HSS): Grades like M2 and SKH59 provide a good balance of hardness and toughness. This makes them suitable for various rolling applications.

Heat Treatment

Heat treatment is critical. It hardens the dies, typically to 60-62 HRc. This process develops the required durability and wear resistance for continuous operation.

Precision Manufacturing Process

• Grinding: Manufacturers precisely grind thread profiles onto die blanks. This ensures accuracy, not milling.
• Dimensional Control: Achieving tight tolerances is paramount. It ensures perfect mating of dies and consistent thread formation.
• Surface Finishes: Polished die surfaces are vital. They ensure smooth material flow and minimal friction.

Surface Treatments & Coatings

Coatings further enhance die performance. Applied through PVD/CVD processes, coatings like TiN, TiCN, AlTiN, and CrN:

• Enhance wear resistance.
• Reduce friction.
• Prevent galling (material transfer).
• Significantly extend die life.

Why Rolled Threads Excel: Advantages Enabled by Quality Dies

High-quality thread rolling dies enable numerous advantages. These make rolled threads superior for many applications.

• Superior Strength & Fatigue Resistance:
  • Work Hardening: Cold working induces compressive stresses. This makes the rolled thread stronger.
  • Unbroken Grain Flow: Rolled threads maintain continuous grain lines. Cut threads, by contrast, interrupt grain flow, creating stress points.
  • Result: Rolled threads boast higher tensile strength, shear strength, and significantly improved fatigue life.
• Enhanced Surface Finish & Dimensional Accuracy: They produce smoother, burnished thread flanks. This results in consistent and precise thread profiles. These meet very tight tolerances.
• Material Efficiency & Cost-Effectiveness:
  • Chipless Process: Thread rolling generates no material waste or chips. This means 100% material utilization.
  • Higher Production Rates: The process is typically much faster than thread cutting.
  • Extended Tool Life: Quality dies last longer. This reduces tooling costs per part over time.

Key Design Considerations for Thread Rolling Dies

Proper die design is paramount for performance and longevity. Several factors are crucial:

• Blank Diameter Control: This is critical for proper thread fill. Deviations lead to incomplete threads or overfilled, potentially damaged dies.
• Helix Angle: The helix angle must be accurately ground into the die. Alternatively, machine spindle tilt sets it to match the workpiece thread.
• Die Profile Accuracy: The die’s thread profile must perfectly replicate the desired final thread form.
• Start Section Design: A gradual lead-in promotes smooth material engagement. Designs like radiused root runout (RRO) improve fatigue resistance in the final part.
• Workpiece Material Compatibility: Dies must be designed specifically for the ductility and characteristics of the material to be rolled.
• Tooling Match: Dies must be precisely matched in pairs or sets. This ensures even pressure and uniform thread formation across the workpiece.

Thread Rolling Dies vs. Thread Cutting: A Strategic Comparison

Choosing between thread rolling and thread cutting involves weighing their respective pros and cons.

Thread Rolling (Material Displacement)

• Pros: Stronger threads, higher fatigue resistance, better surface finish, no material waste, faster for high volume.
• Cons: Requires ductile materials, higher initial tooling cost (dies), less versatile for very deep or specialized threads.

Thread Cutting (Material Removal)

• Pros: More versatile for various materials (even brittle ones), can create a wider range of thread sizes/forms, lower initial tooling cost, easier for short runs and repairs.
• Cons: Weaker threads (due to cut grain), produces chips/waste, lower fatigue resistance, generally slower production rates.

Manufacturers select the appropriate method based on application requirements. Factors include desired strength, production volume, material type, and cost.

Applications of Thread Rolling Dies

Thread rolling dies are ubiquitous across various industries. They are essential for producing reliable threaded components.

• Fasteners: This is the most common use. It includes bolts, screws, studs, and threaded rods used in almost every product and structure.
• Automotive: Found in engine components, chassis parts, and critical fasteners.
• Aerospace: Used for high-strength fasteners in critical applications where reliability is paramount.
• White Goods & Consumer Electronics: Various threaded components for appliances and gadgets.
• Construction: Heavy-duty threaded rods and bolts for structural integrity.
• Energy Generation: Components for wind turbines, power plants, and other energy infrastructure.
• General Engineering: Custom threaded shafts, spindles, and specialty components.
• Tool & Die Manufacturing: Threaded inserts, mold components, and tool shanks.

Conclusion: The Indispensable Role of Thread Rolling Dies

Thread rolling dies are fundamental to modern manufacturing. They enable the production of high-quality, strong, and efficient threaded components. These precision tools are critical. They contribute directly to the reliability and performance of countless products globally. As manufacturing demands evolve, advancements in die technology and materials will continue to push the boundaries of what is possible.
